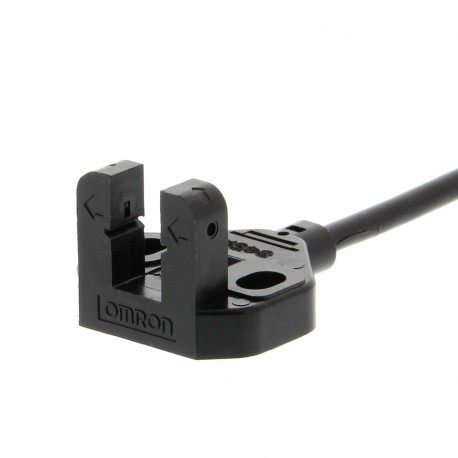

OMRON EE-SX871P EE-SX871P EESX1656F EESX871P OMRON Horseshoe 5mm Light PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX871P EESX1656F EESX871P OMRON Horseshoe 5mm Light PNP

EE-SX871P

EESX1656F

EESX871P

OMRON

10 Pcs.

Horseshoe 5mm Light PNP Photomicro sensor, L-shaped 5 mm slot width, indicator incident light on, L-ON, 5-24 Vdc, PNP, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron Air Cooled frequency converter model EE-SX871P acts as an Omron Horseshoe 5mm Light PNP designed for accurate motion control and object sensing tasks in industrial automation. Slot sensors provide dependable detection capabilities for automated assembly lines, conveyors, and robotic peripheral devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Light switching
  • Type of switch function: Normally open contact (NO)
  • Type of electric connection: Cable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: PNP
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeL-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeLight-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)18 mmProduct Height (unpacked)13.3 mmProduct Depth (unpacked)21 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
