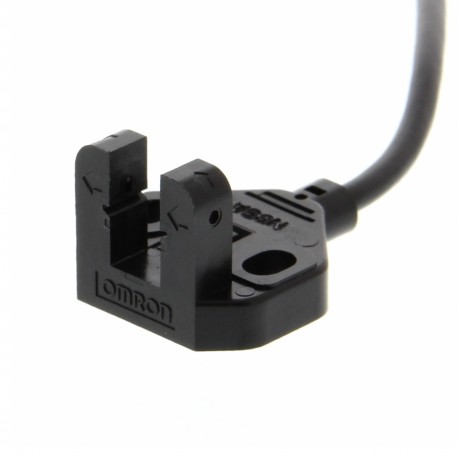

OMRON EE-SX871A 2M EE-SX871A 2M EESX1626D EESX871A2M OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX871A 2M EESX1626D EESX871A2M OMRON Horseshoe 5mm Vert PC-Board

EE-SX871A 2M

EESX1626D

EESX871A2M

OMRON

10 Pcs.

Horseshoe 5mm Vert PC-Board Photo micro sensor, L-shaped 5 mm slot width, indicator incident light off, L-ON, 5 to 24 VDC, NPN, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX871A 2M functions as a precision horseshoe sensor utilized in manufacturing environments for direct component detection and position feedback. Optical slot sensors help maintain precise operational parameters by tracking the physical movement of machine parts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: L-shaped
  • Sensing method: Through-beam with slot
  • Sensing distance: 5 mm
  • Setting method: Fixed
  • Connection method: Cable
  • Cable length: 2 m
  • Output type: NPN
  • Operation mode: Light-ON
  • Response time: 0.17 ms
  • Material housing: PBT
  • Type of light: Infrared light
  • Power supply voltage: 5-24 V
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light switching

More info

▲

Specifications

ShapeL-shaped
Sensing methodThrough-beam with slot
Sensing distance5 mm
Setting methodFixed
Connection methodCable
Cable length2 m
Output typeNPN
Operation modeLight-ON
Response time0.17 ms
Material housingPBT
Thread sizeOther
Type of lightInfrared light
Power supply voltage5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
