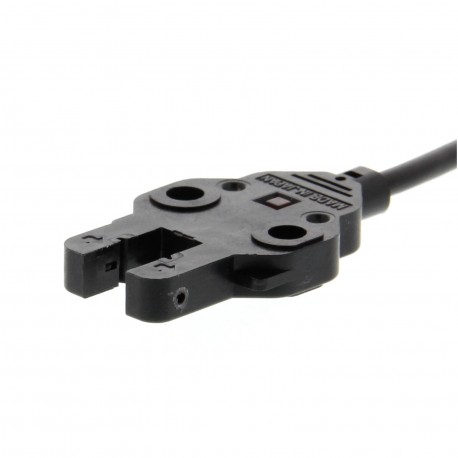

OMRON EE-SX870P EE-SX870P EESX1655H 142714 OMRON Miniature Horseshoe 5mm Light PNP Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX870P EESX1655H 142714 OMRON Miniature Horseshoe 5mm Light PNP Cable 2m

EE-SX870P

EESX1655H

EESX870P

OMRON

10 Pcs.

Horseshoe miniature 5mm Light PNP Cable 2m Photomicro sensor, slim, 5mm slot, indicator incident light on, L-on, PNP, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for compact spatial constraints, the Omron EE-SX870P miniature horseshoe sensor provides precise optical detection for automated motion control. Through-beam optical switches are standard across factory automation lines to monitor small part passage, register edges, and confirm mechanical positioning. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: Straight
  • Sensing method: Through-beam with slot
  • Sensing distance: 5 mm
  • Setting method: Fixed
  • Connection method: Cable
  • Cable length: 2 m
  • Output type: PNP
  • Operation mode: Light-ON
  • Response time: 0.17 ms
  • Material housing: PBT
  • Width: 18 mm
  • Height: 31.1 mm
  • Depth: 4.6 mm
  • Type of light: Infrared light
  • Power supply voltage: 5-24 V
  • Material of optical surface (EF004134): Plastic

More info

▲

Specifications

ShapeStraight
Sensing methodThrough-beam with slot
Sensing distance5 mm
Setting methodFixed
Connection methodCable
Cable length2 m
Output typePNP
Operation modeLight-ON
Response time0.17 ms
Material housingPBT
Thread sizeOther
Width18 mm
Height31.1 mm
Depth4.6 mm
Type of lightInfrared light
Power supply voltage5-24 V
