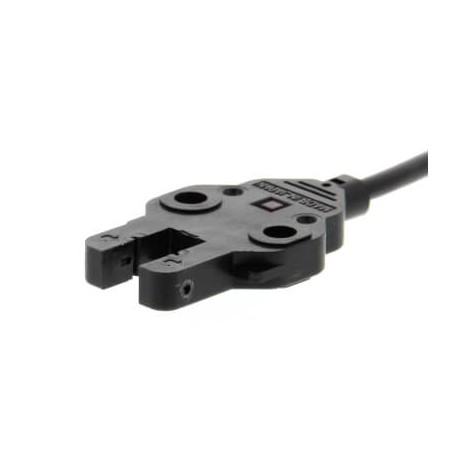

OMRON EE-SX870A 2M EE-SX870A 2M EESX1622A EESX870A2M OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX870A 2M EESX1622A EESX870A2M OMRON Horseshoe 5mm Vert PC-Board

EE-SX870A 2M

EESX1622A

EESX870A2M

OMRON

5 Pcs.

Horseshoe 5mm Vert PC-Board Photomicro sensor, slim, Standard-shape, indicator incident light off, L-on, NPN, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX870A 2M is a horseshoe-shaped PC-board sensor designed for optical presence and position detection in automated machinery. Slot-type photoelectric sensors are commonly utilized in industrial manufacturing environments to monitor moving parts, verify edge positions, and track rotational components without physical contact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light switching
  • Type of switch function (EF003963): Normally open contact (NO)
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 V ... 10 V (EF006807): No

More info

▲
ShapeStraightSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typeNPNOperation modeLight-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)18 mmProduct Height (unpacked)31.1 mmProduct Depth (unpacked)4.6 mmType of lightInfrared lightSupply voltage DC5-24 V
