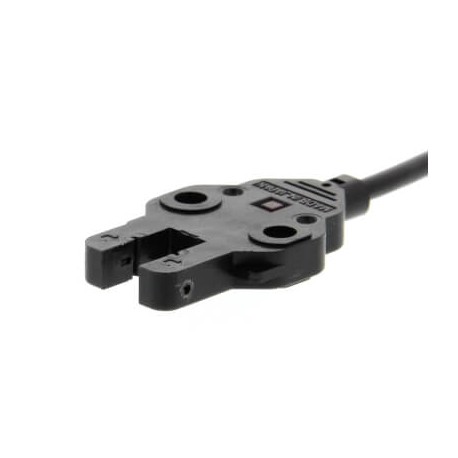

OMRON EE-SX770R EE-SX770R EESX1658B EESX770R OMRON Horseshoe 5mm Vert PC-Board Osc PNP LED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX770R EESX1658B EESX770R OMRON Horseshoe 5mm Vert PC-Board Osc PNP LED

EE-SX770R

EESX1658B

EESX770R

OMRON

1 Pcs.

Horseshoe 5mm Vert PC-Board Osc PNP LED Photomicro sensor, slim, 5 mm slot, indicator incident light off, D-on, PNP, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron EE-SX770R horseshoe 5mm vert PC-board osc PNP LED component operates as a through-beam optical sensor built to monitor precise movements and verify material placement in automated hardware. These switches deliver accurate binary signals whenever an object enters the sensing gap. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Shape: Straight
  • Sensing method: Through-beam with slot
  • Sensing distance: 5 mm
  • Setting method: Fixed
  • Connection method: Cable
  • Cable length: 2 m
  • Output type: PNP
  • Operation mode: Dark-ON
  • Response time: 0.17 ms
  • Material housing: PBT
  • Product Width (unpacked): 18 mm
  • Product Height (unpacked): 31.1 mm
  • Product Depth (unpacked): 4.6 mm
  • Type of light: Infrared light
  • Supply voltage DC: 5-24 V
  • Voltage type (EF000187): DC

More info

▲

Specifications

ShapeStraight
Sensing methodThrough-beam with slot
Sensing distance5 mm
Setting methodFixed
Connection methodCable
Cable length2 m
Output typePNP
Operation modeDark-ON
Response time0.17 ms
Material housingPBT
Thread sizeOther
Product Width (unpacked)18 mm
Product Height (unpacked)31.1 mm
Product Depth (unpacked)4.6 mm
Type of lightInfrared light
Supply voltage DC5-24 V
