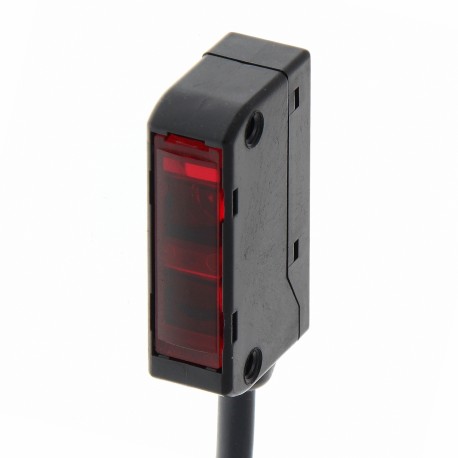

OMRON E3S-LS3NW 2M E3S-LS3NW 2M E3SL1317A E3SLS3NW2M OMRON Point fixed focal length 60mm, NPN light Cable 2m Transmitter/Rece View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3S-LS3NW 2M E3SL1317A E3SLS3NW2M OMRON Point fixed focal length 60mm, NPN light Cable 2m Transmitter/Rece

E3S-LS3NW 2M

E3SL1317A

E3SLS3NW2M

OMRON

1 Pcs.

Point fixed focal length 60mm, NPN light Cable 2m Transmitter/Rece Photoelectric sensor, diffuse, 10-60mm, DC, 3-wire, NPN, vertical, 2m cable

Automation > Light scanner with background masking
Photoelectric sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron point fixed focal length sensor (E3S-LS3NW 2M) is designed for accurate presence detection and structured object verification in automated assembly and packaging systems. Fixed focus photoelectric units are commonly used where exact sensing distances are required to distinguish targets from background elements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: Cuboid
  • Sensing method: Limited reflective
  • Sensing distance: 60 mm
  • Sensing distance (min.): 10 mm
  • Setting method: Manual adjustment
  • Connection method: Cable
  • Cable length: 2 m
  • Output type: NPN
  • Operation mode: Light-ON
  • Response time: 1 ms
  • Material housing: ABS
  • Type of light: Polarity free red light
  • Spot size: 35 x 5 mm
  • Power supply voltage: 12-24 V
  • Features: Structured object detection
  • Voltage type (EF000187): DC

More info

▲

Specifications

ShapeCuboid
Sensing methodLimited reflective
Sensing distance60 mm
Sensing distance (min.)10 mm
Setting methodManual adjustment
Connection methodCable
Cable length2 m
Output typeNPN
Operation modeLight-ON
Response time1 ms
Material housingABS
Thread sizeOther
Type of lightPolarity free red light
Spot size35 x 5 mm
Power supply voltage12-24 V
FeaturesStructured object detection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
