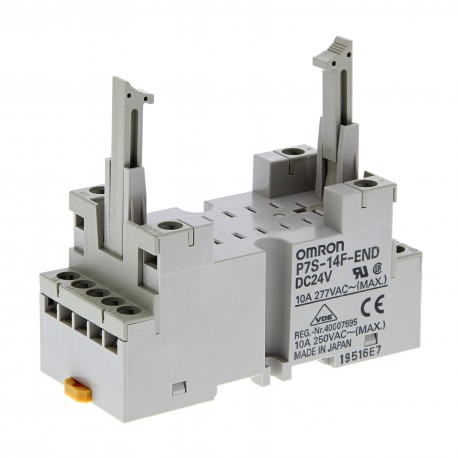

OMRON P7S-14F-END 24VDC P7S-14F-END 24VDC P7SE0001G P7S14FENDDC24 OMRON Base G7S-E 6 poles Screw DIN Rail View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P7S-14F-END 24VDC P7SE0001G P7S14FENDDC24 OMRON Base G7S-E 6 poles Screw DIN Rail

P7S-14F-END 24VDC

P7SE0001G

P7S14FENDDC24

OMRON

5 Pcs.

Base G7S-E 6 poles Screw DIN Rail Socket, DIN rail/surface mounting, screw terminals, led indicator, for G7S relay

Automation > Relay socket
G7S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Forcibly guided contacts
  • Conforms to EN 50205
  • NO contacts: 10 A at 250 VAC and 10 A at 30 VDC, NC contacts: 6 A at 250 VAC and 6 A at 30 VDC (for resistive loads)
  • Reinforced insulation between inputs and outputs and poles
  • 4- and 6-pole relays available

Specifications & ordering info

Ordering information

Relays with forcibly guided contacts

Type

Sealing

Poles

Contacts

Rated voltage

Order code

Standard

Flux-tight

6 poles

4PST-NO, DPST-NC

24 VDC

G7S-4A2B-E

3PST-NO, 3PST-NC

G7S-3A3B-E

Sockets

Type

LED indicator

Rated voltage

Order code

Track-mounting

Track mounting and screw mounting
possible

Yes

24 VDC

P7S-14F-END

Back-mounting

PCB terminals

No

-

P7S-14P-E

Specifications

Ratings

Coil

Rated voltage

Rated current (mA)1

Coil resistance (Ω)1

Max. voltage (V)2

Power consumption (W)

24 VDC

30

800

110%

Approx. 0.8

Contacts

Item

Resistive load

Rated load

NO contact

10 A at 250 VAC, 10 A at 30 VDC

NC contact

6 A at 250 VAC, 6 A at 30 VDC

Rated carry current

NO contact

10 A

NC contact

6 A

Item

Resistive load

Maximum switching voltage

250 VAC, 30 VDC

Maximum switching current

NO contact

10 A

NC contact

6 A

G7S-_-E Characteristics of Sockets

Model

P7S-14F-END

P7S-14P-E

Continuous current

10 A

Dielectric strength

2000 VAC for 1 min. between terminals

Insulation resistance

1000 MΩ min.3

Ambient operating humidity

25 to 85%

5 to 85%

Characteristics

Contact resistance4

100 mΩ max.

Operating time5

50 ms max.

Release time2

50 ms max.

Maximum operating frequency

Mechanical

18,000 operations/h

Rated load

1,800 operations/h

Insulation resistance

100 MΩ min.

Durability6

Mechanical

10,000,000 operations min. (at approx. 18,000 operations/h)

Electrical

100,000 operations min. (at the rated load and approx. 1,800 operations/h)

Inductive load switching capability7(IEC60947-5-1)

NO Contact

AC15 AC240V 5A, DC13 DC24V 2A

NC Contact

AC15 AC240V 3A, DC13 DC24V 2A

Ambient operating temperature

-25 to 70°C (with no icing or condensation)

Ambient operating humidity

5% to 85%

Note: The values listed above are initial values.

Please check Omron in the Internet for updated information on product reliability data and the SISTEMA libraries: http://industrial.omron.eu/safety

1.The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.

2.The maximum voltage is based on an ambient operating temperature of 23°C maximum.

3.Measurement conditions: Measurement of the same points as for the dielectric strength at 500 VDC.

4.Measurement conditions: 5 VDC, 10 mA, voltage drop method.

5.Measurement conditions: Rated voltage operation, ambient operating temperature: 23°C, contact bounce time is not included.

6.The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%.

7.AC15: cosφ= 0.3, DC13: L/R = 96-ms


ETIM for 113493 Relays (EC001456)
Feature Name Feature Value
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Type of electric connection (EF003961) Screw connection
Function extension possible (EF003444) No
With detachable clamps (EF003340) No
Number of pins (EF005580) 14
Width (EF000008) 90.5 mm
Height (EF000040) 80 mm
Depth (EF000049) 40 mm
