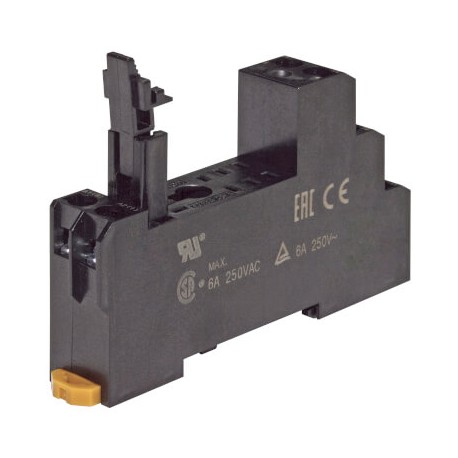

OMRON P2RFZ-08-E P2RFZ-08-E P2R 7002E P2RFZ08EBYOMZ OMRON Socket, DIN rail/surface mounting, 8-pin, screw terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P2RFZ-08-E P2R 7002E P2RFZ08EBYOMZ OMRON Socket, DIN rail/surface mounting, 8-pin, screw terminals

P2RFZ-08-E

P2R 7002E

P2RFZ08EBYOMZ

OMRON

50 Pcs.

Socket, DIN rail/surface mounting, 8-pin, screw terminals

Automation > Relay socket
P2RF

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Socket, DIN rail/surface mounting, 8-pin, screw terminals (P2RFZ-08-E) is an electromechanical relay accessory designed to provide secure terminal connections and a reliable mounting interface for industrial control relays within control panels. Relay sockets facilitate fast replacement of control components during maintenance without disturbing existing panel wiring. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Type of electric connection (EF003961): Screw connection
  • Function extension possible (EF003444): No
  • With detachable clamps (EF003340): No
  • Number of pins (EF005580): 8
  • Width (EF000008): 16 mm
  • Height (EF000040): 78.5 mm
  • Depth (EF000049): 48 mm

More info

▲
Applicable product familyG2R-2-S, K7LMounting methodDIN rail/screwProduct Depth (unpacked)61.0 mmProduct Height (unpacked)79 mmProduct Width (unpacked)15.5 mmTerminal typeScrewColorBlackHold down clip includedRelease Lever includedApplicable ferrulesForked terminals, Round terminals
