View larger
Images are for illustrative purposes only. Please refer to data sheet for details

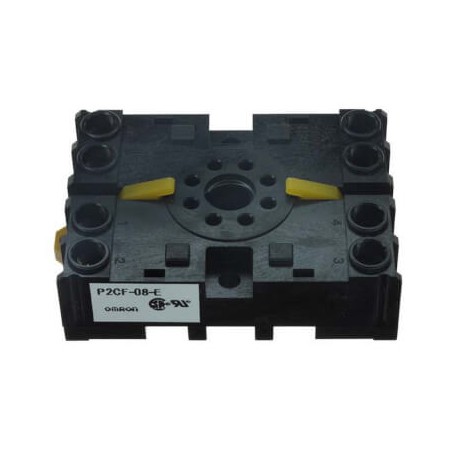

P2CF-08-E P2CF2109G P2CF08E 2 OMRON Base DIN rail, front rectangular 8-pin
P2CF-08-E
P2CF2109G
P2CF08E 2
OMRON
10 Pcs.
Base DIN rail, front rectangular 8-pin
Socket, DIN rail/surface mounting, 8-pin, screw terminals
Automation > Relay socket
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Applicable product familyH3CA, H3CR, H5CN, H5CX, H5CZMounting methodDIN railProduct Width (unpacked)50 mmProduct Height (unpacked)70 mmProduct Depth (unpacked)20 mmColorBlackApplicable ferrulesForked terminals
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Type of electric connection (EF003961) | Screw connection |
| Function extension possible (EF003444) | No |
| With detachable clamps (EF003340) | No |
| Number of pins (EF005580) | 8 |
| Width (EF000008) | 49 mm |
| Height (EF000040) | 27 mm |
| Depth (EF000049) | 76 mm |
