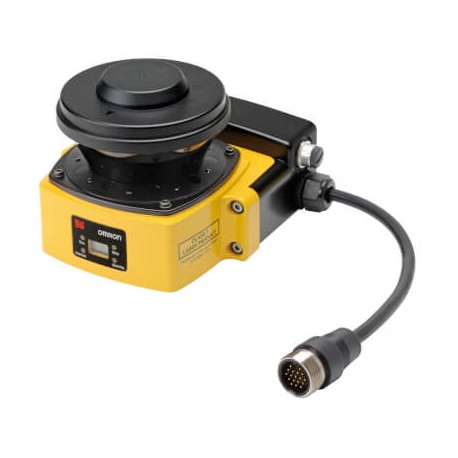

OMRON OS32C-SP1 VER2 OS32C-SP1 VER2 OS326022D OS32CSP1VER2 OMRON Scanner laser safety 3m/10m Cable side View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OS32C-SP1 VER2 OS326022D OS32CSP1VER2 OMRON Scanner laser safety 3m/10m Cable side

OS32C-SP1 VER2

OS326022D

OS32CSP1VER2

OMRON

1 Pcs.

Scanner laser safety 3m/10m Cable side Safety laser scanner, safety radius 3 m, warning zone 10 m, PLd & Cat 3 (ISO 13849-1), Ethernet, 24 VDC, side location cable exit

Automation > Laser scanner
OS32C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron OS32C-SP1 VER2 is a laser safety scanner engineered to protect hazardous zones in industrial automation environments. Safety laser scanners monitor defined areas around automated guided vehicles or machinery, instantly triggering machine stop signals when personnel or objects breach the protected fields. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Type of switching output of the OSSD: PNP
  • Laser protection class: Class 1
  • Type of safety according to IEC 61496-1: 3
  • Type of electric connection: Cable with connector
  • Operation agent-safety class: Safety class 3
  • With configurable message output: Yes
  • Suitable for safety functions: Yes
  • With alert field output: Yes
  • With restart blockage: Yes
  • Max. output current at protected output: 250 mA
  • Number of safety fields: 140
  • Scanning interval: 0.4 Hz
  • Wavelength of the sensor: 905 nm
  • Detection capability for test bodies: 70 mm
  • Response time: 80 ms

More info

▲
Type of safety according to IEC 61496-13Maximum safety range3 mMaximum warning range10 mCable entry directionSideType of switching output of the OSSDPNPConnection methodPigtail connectorKey featuresConfigurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoringType of protectionHand protectionDetection capability70 mmSuitable for safety functionsScan angle270 °Scanning interval0.4 HzResponse time80 msNumber of safety fields140Wavelength of the sensor905 nmNumber of protected semiconductor outputs2Number of semiconductor outputs with signalling function2Laser protection classClass 1Supply voltage DC16.8-30 VVoltage typeDCMax. output current at protected output250 mADegree of protection (IP)IP65With alert field outputAmbient temperature-10-50 °COverall length of sensor143 mmHeight of sensor105 mmWidth of sensor105 mm
