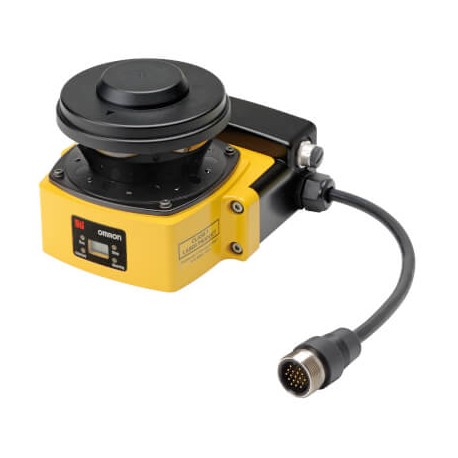

OMRON OS32C-SP1-DM OS32C-SP1-DM OS326025R OS32CSP1DM OMRON Scanner laser safety 3m/10m Cable to the Ethernet/IP side View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OS32C-SP1-DM OS326025R OS32CSP1DM OMRON Scanner laser safety 3m/10m Cable to the Ethernet/IP side

OS32C-SP1-DM

OS326025R

OS32CSP1DM

OMRON

1 Pcs.

Scanner laser safety 3m/10m Cable to the Ethernet/IP side Safety laser scanner, measurement and EtherNet/IP, safety radius 3 m, warning zone 10 m, PLd & Cat 3 (ISO 13849-1), Ethernet, 24 VDC, side location ca

Automation > Laser scanner
OS32C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Type of safety according to IEC 61496-13Maximum safety range3 mMaximum warning range10 mCommunication port(s)EtherNet/IPCable entry directionSideType of switching output of the OSSDPNPConnection methodPigtail connectorKey featuresConfigurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoringType of protectionHand protectionDetection capability70 mmSuitable for safety functionsScan angle270 °Scanning interval0.4 HzResponse time80 msNumber of safety fields140Wavelength of the sensor905 nmNumber of protected semiconductor outputs2Number of semiconductor outputs with signalling function2Laser protection classClass 1Supply voltage DC16.8-30 VVoltage typeDCMax. output current at protected output250 mADegree of protection (IP)IP65With alert field outputAmbient temperature-10-50 °COverall length of sensor143 mmHeight of sensor105 mmWidth of sensor105 mm
ETIM for 674734 Sensors (EC002550)
Feature Name Feature Value
Voltage type (EF000187) DC
Type of switching output of the OSSD (EF003959) PNP
Laser protection class (EF004027) Class 1
Type of safety according to IEC 61496-1 (EF004105) 3
Type of interface for safety communication (EF003956) Other
Type of electric connection (EF003961) Cable with connector
Operation agent-safety class (EF003982) Safety class 3
With configurable message output (EF004018) Yes
With monitoring function downstream switching devices (EF004052) No
Suitable for safety functions (EF001597) Yes
With alert field output (EF004131) Yes
With restart blockage (EF004054) Yes
Max. output current at protected output (EF004035) 250 mA
Number of safety fields (EF003950) 140
Scanning interval (EF003936) 0.4 Hz
Number of semiconductor outputs with signalling function (EF003945) 2
Wavelength of the sensor (EF004132) 905 nm
Detection capability for test bodies (EF003991) 70 mm
Response time (EF004094) 80 ms
Number of protected semiconductor outputs (EF003951) 2
Transmission range of the measuring range (EF004097) 10 m
Transmission range of the safety field (EF004098) 3 m
Switching voltage of OSSD at state "high" (EF004102) 2 V
Width sensor (EF007094) 105 mm
Scan angle (EF004101) 270 °
Height of sensor (EF007283) 105 mm
Transmission range of the alert field (EF004099) 10 m
Length of sensor (EF007334) 143 mm
Rated control supply voltage DC (EF003980) 16.8 V
Ambient temperature (EF002386) -10 °C
