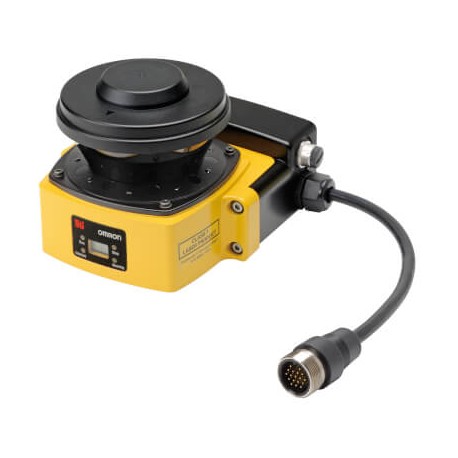

OS32C-SP1-4M OS326103D OS32CSP14M OMRON Scanner laser safety 4m/15m Cable side
OS32C-SP1-4M
OS326103D
OS32CSP14M
OMRON
1 Pcs.
Automation > Laser scanner
OS32C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron OS32C-SP1-4M safety laser scanner functions as a critical optical safeguarding tool designed to protect operators working near automated guided vehicles and industrial machinery. By continuously scanning defined protective zones, the device prevents accidental collisions and halts hazardous operations when intrusion occurs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type: DC
- Type of switching output of the OSSD: PNP
- Laser protection class: Class 1
- Type of safety according to IEC 61496-1: 3
- Type of electric connection: Cable with connector
- Operation agent-safety class: Safety class 3
- With configurable message output: Yes
- Suitable for safety functions: Yes
- With alert field output: Yes
- With restart blockage: Yes
- Max. output current at protected output: 250 mA
- Number of safety fields: 140
- Scanning interval: 0.4 Hz
- Wavelength of the sensor: 905 nm
- Detection capability for test bodies: 70 mm
- Response time: 80 ms
