View larger
Images are for illustrative purposes only. Please refer to data sheet for details

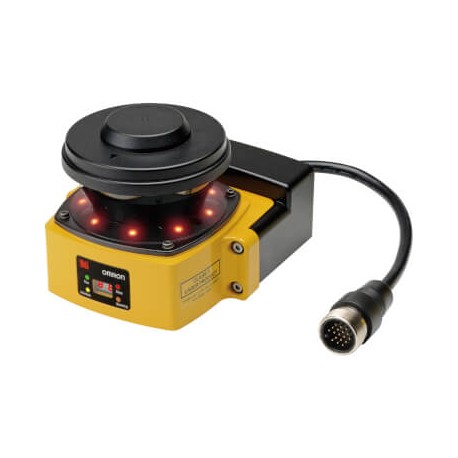

OS32C-BP-DM OS326024M OS32CBPDM OMRON Scanner laser safety 3m/10m Cable back Ethernet/IP
OS32C-BP-DM
OS326024M
OS32CBPDM
OMRON
1 Pcs.
Scanner laser safety 3m/10m Cable back Ethernet/IP
Safety laser scanner, measurement and EtherNet/IP, OS32C, safety radius 3 m, warning zone 10 m, PLd & Cat 3 (ISO 13849-1), Ethernet, 24 VDC, back loca
Automation > Laser scanner
OS32C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type of safety according to IEC 61496-13Maximum safety range3 mMaximum warning range10 mCommunication port(s)EtherNet/IPCable entry directionBackType of switching output of the OSSDPNPConnection methodPigtail connectorKey featuresConfigurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoringType of protectionHand protectionDetection capability70 mmSuitable for safety functionsScan angle270 °Scanning interval0.4 HzResponse time80 msNumber of safety fields140Wavelength of the sensor905 nmNumber of protected semiconductor outputs2Number of semiconductor outputs with signalling function2Laser protection classClass 1Supply voltage DC16.8-30 VVoltage typeDCMax. output current at protected output250 mADegree of protection (IP)IP65With alert field outputAmbient temperature-10-50 °COverall length of sensor143 mmHeight of sensor105 mmWidth of sensor105 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Type of switching output of the OSSD (EF003959) | PNP |
| Laser protection class (EF004027) | Class 1 |
| Type of safety according to IEC 61496-1 (EF004105) | 3 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Cable with connector |
| Operation agent-safety class (EF003982) | Safety class 3 |
| With configurable message output (EF004018) | Yes |
| With monitoring function downstream switching devices (EF004052) | No |
| Suitable for safety functions (EF001597) | Yes |
| With alert field output (EF004131) | Yes |
| With restart blockage (EF004054) | Yes |
| Max. output current at protected output (EF004035) | 250 mA |
| Number of safety fields (EF003950) | 140 |
| Scanning interval (EF003936) | 0.4 Hz |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Wavelength of the sensor (EF004132) | 905 nm |
| Detection capability for test bodies (EF003991) | 70 mm |
| Response time (EF004094) | 80 ms |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Transmission range of the measuring range (EF004097) | 10 m |
| Transmission range of the safety field (EF004098) | 3 m |
| Switching voltage of OSSD at state "high" (EF004102) | 2 V |
| Width sensor (EF007094) | 105 mm |
| Scan angle (EF004101) | 270 ° |
| Height of sensor (EF007283) | 105 mm |
| Transmission range of the alert field (EF004099) | 10 m |
| Length of sensor (EF007334) | 143 mm |
| Rated control supply voltage DC (EF003980) | 16.8 V |
| Ambient temperature (EF002386) | -10 °C |
