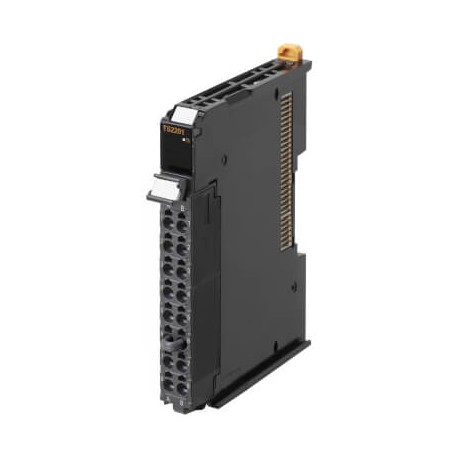

OMRON NX-TS2202 NX-TS2202 NX020057G NXTS2202 OMRON Unit NX 2 Inputs: RTD 0.01 ° C 10 ms View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-TS2202 NX020057G NXTS2202 OMRON Unit NX 2 Inputs: RTD 0.01 ° C 10 ms

NX-TS2202

NX020057G

NXTS2202

OMRON

1 Pcs.

Unit NX - 2 Inputs: RTD 0.01 ° C 10 ms 2 Temperature Sensor Inputs, Pt100 (3-wire), resolution 0.01°C, 10 ms/Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number NX-TS2202 is a temperature sensor unit built to process resistance thermometer detector inputs, converting thermal readings into precise digital values for automation systems. These specialty units ensure accurate thermal management and monitoring across industrial manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs2Temperature input typePt100Linear analog input typeNoneResolution of the analog inputs17 BitInput circuit typeSingle-endedNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time10 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)70 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
