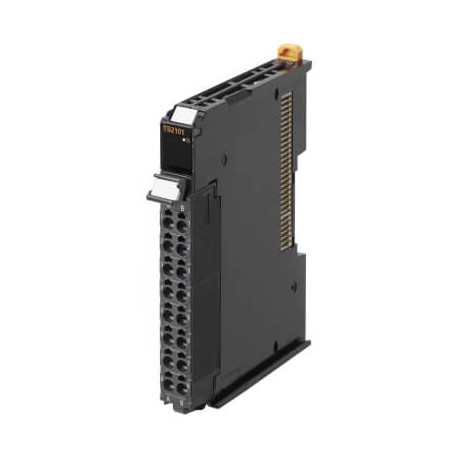

OMRON NX-TS2101 NX-TS2101 NX020050M NXTS2101 OMRON Unit NX 2 Inputs Thermocouple 0.1 ° C 200 ms View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-TS2101 NX020050M NXTS2101 OMRON Unit NX 2 Inputs Thermocouple 0.1 ° C 200 ms

NX-TS2101

NX020050M

NXTS2101

OMRON

1 Pcs.

Unit NX - 2 Inputs Thermocouple 0.1 ° C 200 ms 2 Thermocouple Inputs, type K, J, T, E, L, U, N, R, S, B, C(W/Re5-26), P(PLII), resolution 0.1°C, 250 ms/Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron unit NX 2 inputs thermocouple measures extreme industrial temperatures by translating millivolt signals from temperature probes into usable data for programmable logic controllers. These measurement modules are essential across thermal processing applications, furnaces, and heavy manufacturing environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): Yes
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs2Temperature input typeB, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, ULinear analog input typeNoneResolution of the analog inputs14 BitInput circuit typeDifferentialNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time250 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)70 g
