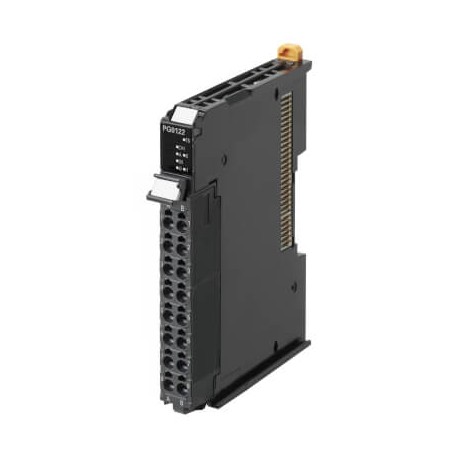

OMRON NX-PG0112 NX-PG0112 NX020104B NXPG0112 OMRON Unit NX 1 Pulse Output NPN OR/D P/D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-PG0112 NX020104B NXPG0112 OMRON Unit NX 1 Pulse Output NPN OR/D P/D

NX-PG0112

NX020104B

NXPG0112

OMRON

1 Pcs.

Unit NX - 1 Pulse Output NPN OR/D P/D 1 x Pulse Output, Forward/reverse direction pulses or Pulse + direction signal, NPN, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - function-/technology module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX-PG0112 is an NX series unit equipped with 1 pulse output supporting NPN operation for precise motion control setups. Position controller units of this type provide reliable train output signals to manage individual axis movements in automated machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Function block access control (EF007213): No
  • Radio standard UMTS (EF008525): No
  • Function block affirm push button (EF007214): No
  • Suitable for counting (EF003248): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Suitable for weighing (EF003249): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Suitable for SSI (EF003254): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Suitable for CNC (EF003256): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Suitable for detection absolute value (EF003259): No

More info

▲
I/O systemNX I/O BusType of modulePulse outputDigital input typeNoneDigital output typeNPN, Voltage pulseSignal processingSynchronous, Task period prioritizedNumber of encoder input channels0Max. encoder input frequency0 kHzNumber of pulse output channels1Max. pulse output frequency500 kHzIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneNumber of IOV (V+) terminals6Number of IOG (V-) terminals2Degree of protection (IP)IP20Product Height (unpacked)106 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)70 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
