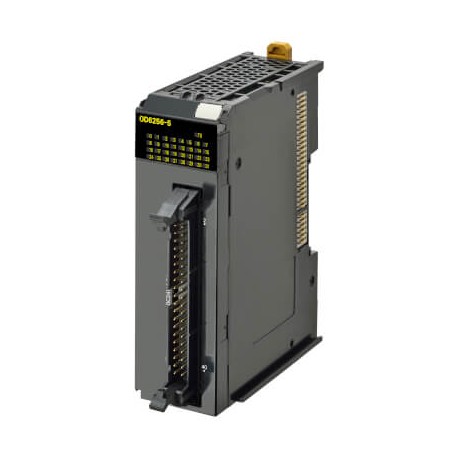

OMRON NX-OD6256-5 NX-OD6256-5 NX020098D NXOD62565 OMRON Unit NX 32 PNP Outputs Standard 30mm MIL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD6256-5 NX020098D NXOD62565 OMRON Unit NX 32 PNP Outputs Standard 30mm MIL

NX-OD6256-5

NX020098D

NXOD62565

OMRON

1 Pcs.

Unit NX - 32 PNP Outputs Standard - 30mm - MIL 32 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL40 connector (not included), 30 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as an Omron NX-OD6256-5 digital output unit, this hardware bridges programmable controllers with plant floor actuators such as solenoids and relay drivers. Digital output modules switch power loads on and off based on logic instructions, driving physical responses throughout industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: NX-OD6256-5
  • Catalogue code: NX020098D
  • Catalogue title: NX-OD6256-5 NX020098D NXOD62565 OMRON Unit NX 32 PNP Outputs Standard 30mm MIL
  • Product description: I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.5-1.0 msNumber of digital outputs32Digital output typePNPPermitted voltage at output20.4-28.8 VOutput current0.5 A
  • Manufacturer summary: Unit NX - 32 PNP Outputs Standard - 30mm - MIL 32 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL40 connector (not included), 30 mm wide

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.5-1.0 msNumber of digital outputs32Digital output typePNPPermitted voltage at output20.4-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method1-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typeMIL (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals4Number of IOG (V-) terminals4Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)30 mmProduct Depth (unpacked)89.52 mmProduct Weight (unpacked)95 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
