OMRON NX-OD5256-5 NX-OD5256-5 NX020097F NXOD52565 OMRON Unit NX 16 PNP Outputs Standard 30mm MIL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD5256-5 NX020097F NXOD52565 OMRON Unit NX 16 PNP Outputs Standard 30mm MIL

NX-OD5256-5

NX020097F

NXOD52565

OMRON

1 Pcs.

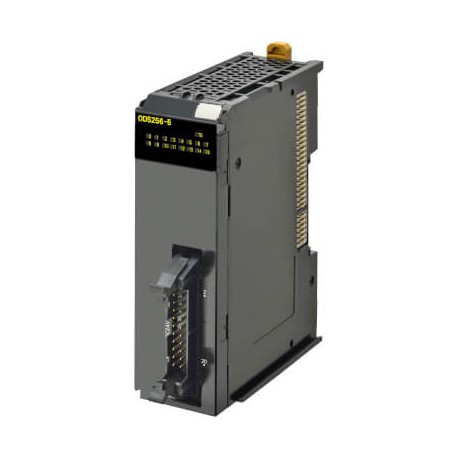

Unit NX - 16 PNP Outputs Standard - 30mm - MIL 16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered as an Omron unit under part number NX-OD5256-5, this digital output module manages transistor-based switching operations within modular machine controllers. Output cards translate internal software commands into physical electrical actions that drive external loads like valves and indicators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Flat plug-in connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.5-1.0 msNumber of digital outputs16Digital output typePNPPermitted voltage at output20.4-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method1-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typeMIL (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals2Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)30 mmProduct Depth (unpacked)89.52 mmProduct Weight (unpacked)85 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
