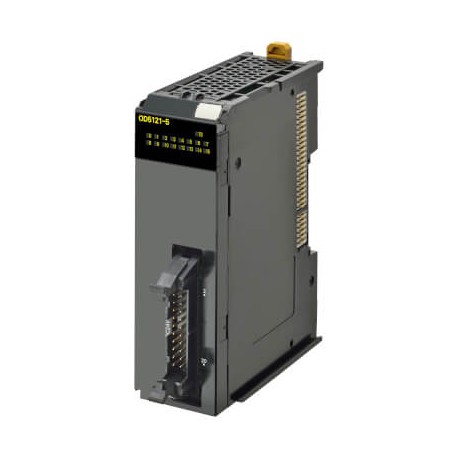

OMRON NX-OD5121-5 NX-OD5121-5 NX020095M NXOD51215 OMRON Unit NX 16 Outputs NPN Standard 30mm MIL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD5121-5 NX020095M NXOD51215 OMRON Unit NX 16 Outputs NPN Standard 30mm MIL

NX-OD5121-5

NX020095M

NXOD51215

OMRON

1 Pcs.

Unit NX - 16 Outputs NPN Standard - 30mm - MIL 16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron unit nx - 16 outputs npn standard - 30mm - mil module, identified as NX-OD5121-5, functions as a modular digital output unit designed to interface controller systems with external load devices in industrial automation architectures. Modular I/O blocks are routinely installed in control cabinets to expand the discrete output capacity of programmable automation controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: NX-OD5121-5
  • Catalogue code: NX020095M
  • Catalogue title: NX-OD5121-5 NX020095M NXOD51215 OMRON Unit NX 16 Outputs NPN Standard 30mm MIL
  • Product description: I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.1-0.8 msNumber of digital outputs16Digital output typeNPNPermitted voltage at output10.2-28.8 VOutput current0.5 A
  • Manufacturer summary: Unit NX - 16 Outputs NPN Standard - 30mm - MIL 16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, MIL20 connector (not included), 30 mm wide

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.1-0.8 msNumber of digital outputs16Digital output typeNPNPermitted voltage at output10.2-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method1-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typeMIL (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals2Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)30 mmProduct Depth (unpacked)89.52 mmProduct Weight (unpacked)80 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
