OMRON NX-OD2258 NX-OD2258 NX020082H NXOD2258 OMRON Unit NX 2 PNP Outputs Time Stamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD2258 NX020082H NXOD2258 OMRON Unit NX 2 PNP Outputs Time Stamp

NX-OD2258

NX020082H

NXOD2258

OMRON

1 Pcs.

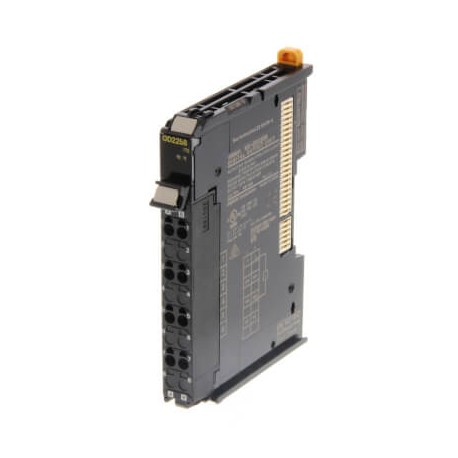

Unit NX - 2 PNP Outputs Time Stamp 2 Digital Outputs, High speed Timestamp, PNP 24 VDC, 0.5 A/point, 1 A/NX Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron unit NX 2 PNP outputs time stamp, designated as part number NX-OD2258, is a specialized digital output module designed for precise timing and event synchronization in automated machinery. This unit switches DC loads with high time accuracy based on instructions from compatible controller platforms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0-0.3 msNumber of digital outputs2Digital output typePNPPermitted voltage at output15.0-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method2-wire, 3-wireSignal processingHigh speed, TimestampIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals2Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
