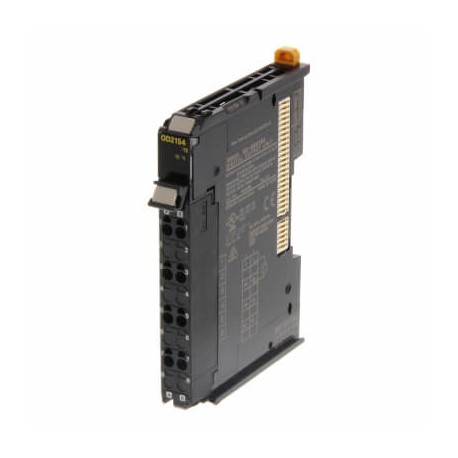

NX-OD2154 NX020081M NXOD2154 OMRON Unit NX 2 Outputs NPN Time Stamp
NX-OD2154
NX020081M
NXOD2154
OMRON
1 Pcs.
Unit NX - 2 Outputs NPN Time Stamp
2 Digital Outputs, High speed Timestamp, NPN 24 VDC, 0.5 A/point, 1 A/NX Unit, screwless push-in connector, 12 mm wide
Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An NX-OD2154 NX020081M NXOD2154 OMRON Unit NX 2 Outputs NPN Time Stamp switches electrical loads and coordinates actuator functions within modular automation configurations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of output voltage (EF008222): DC
- Degree of protection (IP) (EF005474): IP20
- Performance level according to EN ISO 13849-1 (EF007399): Level a
- Voltage type (supply voltage) (EF002991): DC
- Type of voltage (input voltage) (EF003033): DC
- Type of digital output (EF003601): Transistor
- Type of electric connection (EF003961): Spring clamp connection
- Radio standard UMTS (EF008525): No
- Supporting protocol for EtherCAT (EF017564): Yes
- Appendant operation agent (Ex ib) (EF004142): No
- Supporting protocol for other bus systems (EF003062): Yes
- Supporting protocol for SERCOS (EF006657): No
- IO link master (EF007298): No
- Rack-assembly possible (EF007018): No
- Supporting protocol for KNX (EF003055): No
- Supporting protocol for LON (EF003017): No
More info
▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0-0.3 msNumber of digital outputs2Digital output typeNPNPermitted voltage at output15.0-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method2-wire, 3-wireSignal processingHigh speed, TimestampIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals2Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g
