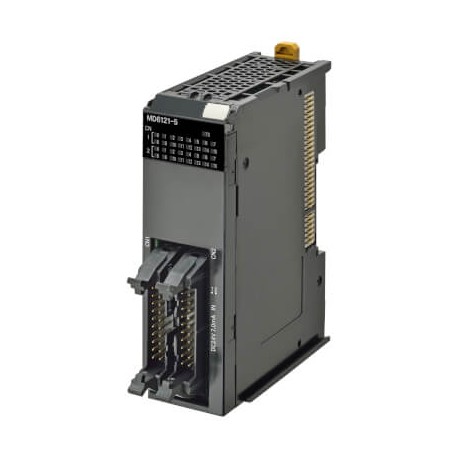

OMRON NX-MD6121-5 NX-MD6121-5 NX020099B NXMD61215 OMRON Unit NX 16E + 16S NPN Standard 30mm -MIL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-MD6121-5 NX020099B NXMD61215 OMRON Unit NX 16E + 16S NPN Standard 30mm -MIL

NX-MD6121-5

NX020099B

NXMD61215

OMRON

1 Pcs.

Unit NX - 16E + 16S NPN Standard - 30mm -MIL 16 Digital Inputs + 16 Digital NPN Outputs, Standard speed, 24 VDC, 2 x MIL20 connectors (not included), 30 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron NX-MD6121-5 NX020099B NXMD61215 OMRON Unit NX 16E + 16S NPN Standard 30mm -MIL combines multiple input and output channels for comprehensive machine control integration. Mixed I/O units optimize panel space by handling both sensor signals and actuator commands in one compact footprint.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Flat plug-in connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs16Digital input typePNP/NPNPermitted voltage at input15-28.8 VOFF/ON delay0.02-0.4 msNumber of digital outputs16Digital output typeNPNPermitted voltage at output10.2-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method1-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typeMIL (plug not included)Number of I/O connectors2Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals2Number of COM terminals2Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)30 mmProduct Depth (unpacked)89.52 mmProduct Weight (unpacked)155 g
