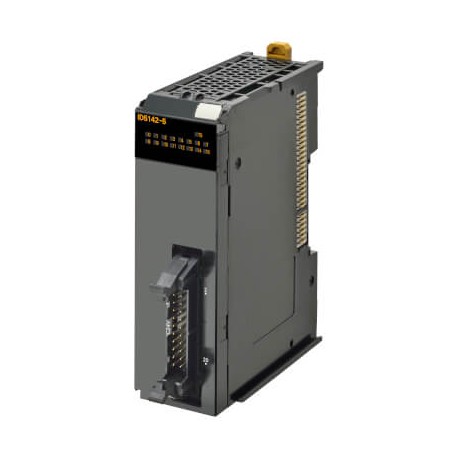

OMRON NX-ID5142-5 NX-ID5142-5 NX020093C NXID51425 OMRON Unit NX 16 Inputs-Standard 30mm MIL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-ID5142-5 NX020093C NXID51425 OMRON Unit NX 16 Inputs-Standard 30mm MIL

NX-ID5142-5

NX020093C

NXID51425

OMRON

1 Pcs.

Unit NX - 16 Inputs-Standard - 30mm - MIL 16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL20 connector (not included), 30 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Omron under part number NX-ID5142-5, this digital input module acquires multi-channel switching signals for modular controller racks in automated industrial machinery. Standard input modules collect status information from factory floor sensors to feed real-time processing routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: NX-ID5142-5
  • Catalogue code: NX020093C
  • Catalogue title: NX-ID5142-5 NX020093C NXID51425 OMRON Unit NX 16 Inputs-Standard 30mm MIL
  • Product description: I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs16Digital input typePNP/NPNPermitted voltage at input15-28.8 VOFF/ON delay0.02-0.4 msNumber of digital outputs0Digital output typeNoneOutput current0 A
  • Manufacturer summary: Unit NX - 16 Inputs-Standard - 30mm - MIL 16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL20 connector (not included), 30 mm wide

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs16Digital input typePNP/NPNPermitted voltage at input15-28.8 VOFF/ON delay0.02-0.4 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsConnection method1-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typeMIL (plug not included)Number of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals2Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)30 mmProduct Depth (unpacked)89.52 mmProduct Weight (unpacked)85 g
