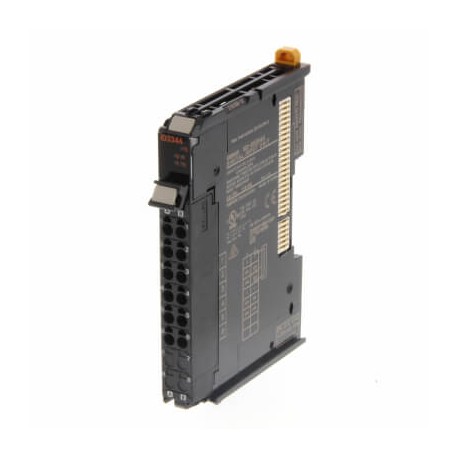

OMRON NX-ID3344 NX-ID3344 NX020009G NXID3344 OMRON Unit NX 4 Inputs NPN Time Stamp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-ID3344 NX020009G NXID3344 OMRON Unit NX 4 Inputs NPN Time Stamp

NX-ID3344

NX020009G

NXID3344

OMRON

1 Pcs.

Unit NX - 4 Inputs NPN Time Stamp 4 Digital Inputs, High speed Timestamp, NPN 24 VDC, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX-ID3344 unit is a specialized digital input component designed to collect discrete sensor data and integrate it seamlessly into modern machine automation architectures. Input units of this type provide reliable signal acquisition for safety systems, encoders, and factory instrumentation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs4Digital input typeNPNPermitted voltage at input15-28.8 VOFF/ON delay0-0.0001 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsConnection method2-wire, 3-wireSignal processingHigh speed, TimestampIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals4Number of IOG (V-) terminals4Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
