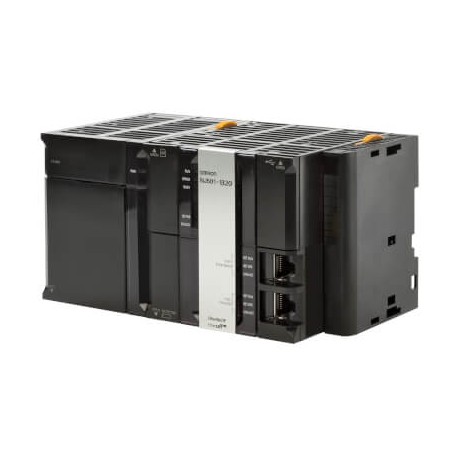

OMRON NJ501-4320 NJ501-4320 NX010028R NJ5014320 OMRON NJ501 Machine Controller + Robotics + Client SQL 16 Axes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NJ501-4320 NX010028R NJ5014320 OMRON NJ501 Machine Controller + Robotics + Client SQL 16 Axes

NJ501-4320

NX010028R

NJ5014320

OMRON

1 Pcs.

NJ501 Machine Controller + Robotics + Client SQL 16 Axes Sysmac NJ5 CPU with Robot kinematics, 16 axes, SQL client

Automation > PLC CPU-module
Machine Controllers NJ5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for advanced manufacturing, the Omron NJ501-4320 Machine Controller integrates robotics and database connectivity to manage multi-axis production equipment. Modular machine controllers coordinate motion trajectories, logic tasks, and enterprise data exchange in automated factory cells. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes
  • Supporting protocol for DNP3 (EF016068): No

More info

▲
Controller functionalityDB connection, Motion control, Robotics, Sequence controlMax. number of synchronous axes16Max. number of axes (incl. virtual)16Max. number of robots4Primary task cycle time0.5 msProgram memory20 MBVariables memory6 MBCommunication port(s)EtherCAT Master, EtherNet/IP, USBCommunication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes192I/O systemCJ I/O BusMax. number of expansion units40Product Weight (unpacked)550 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
