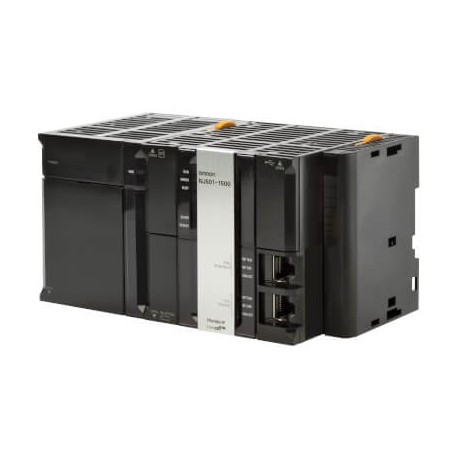

OMRON NJ501-1500 NJ501-1500 NX010004A NJ5011500,1 OMRON NJ501 Machine Controller 64 Axes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NJ501-1500 NX010004A NJ5011500,1 OMRON NJ501 Machine Controller 64 Axes

NJ501-1500

NX010004A

NJ5011500.1

OMRON

1 Pcs.

NJ501 Machine Controller 64 Axes Sysmac NJ5 CPU, 20 mB memory, built-in EtherCAT (64 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP

Automation > PLC CPU-module
Machine Controllers NJ5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

NJ501-1500 OMRON NJ501 Machine Controller is a high-performance automation controller engineered to handle large-scale motion control and logic processing tasks across complex manufacturing environments. Central machine controllers synchronize multiple servo axes, communicate over industrial Ethernet networks, and manage demanding production workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
Controller functionalityMotion control, OPC-UA, Sequence controlMax. number of synchronous axes64Max. number of axes (incl. virtual)64Max. number of robots0Primary task cycle time0.5 msProgram memory20 MBVariables memory6 MBCommunication port(s)EtherCAT Master, EtherNet/IP, USBCommunication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes192I/O systemCJ I/O BusMax. number of expansion units40Product Height (unpacked)96 mmProduct Width (unpacked)90 mmProduct Depth (unpacked)150 mmProduct Weight (unpacked)550 g
