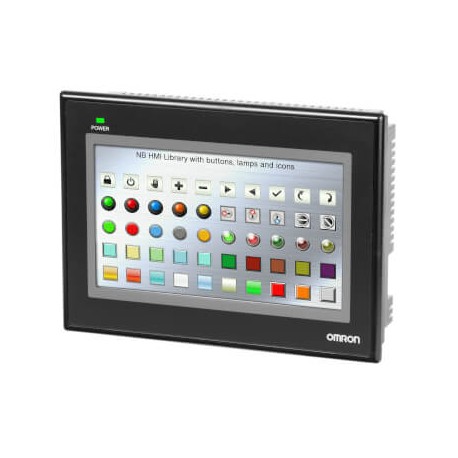

OMRON NB7W-TW01B NB7W-TW01B NB7W9004H NB7WTW01B,1 OMRON Terminal NB 7"" Color TFT, 800 x 480, Ethernet, USB master View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NB7W-TW01B NB7W9004H NB7WTW01B,1 OMRON Terminal NB 7"" Color TFT, 800 x 480, Ethernet, USB master

NB7W-TW01B

NB7W9004H

NB7WTW01B.1

OMRON

1 Pcs.

Terminal NB 7"" Color TFT, 800 x 480, Ethernet, USB master Touch screen HMI, 7 inch WVGA (800 x 480 pixel), TFT color, Ethernet + USB Host

Automation > Graphic panel
NB Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron NB7W-TW01B terminal NB 7" color TFT, 800 x 480 acts as an operator terminal designed for visualizing and controlling industrial processes in factory settings. HMI units of this class are typically mounted onto enclosures to present graphical data and operational diagnostics to plant personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screen diagonal: 7 in
  • Number of pixels, horizontal: 800
  • Number of pixels, vertical: 480
  • Type of display: TFT
  • Frame color: Black
  • Number of Ethernet ports: 1
  • Number of USB ports: 2
  • Number of RS-232 ports: 2
  • Number of RS-422 ports: 1
  • Number of RS-485 ports: 1
  • Number of colors of the display: 65536
  • Number of grey-scales/blue-scales of display: 64
  • Degree of protection (IP), front side: IP65
  • Width of the front: 202.0 mm
  • Height of the front: 148 mm
  • Width of panel cutout: 191 mm

More info

▲

Specifications

Screen diagonal7 in
Number of pixels, horizontal800
Number of pixels, vertical480
Type of displayTFT
Frame colorBlack
Number of Ethernet ports1
Number of USB ports2
Number of RS-232 ports2
Number of RS-422 ports1
Number of RS-485 ports1
Number of colors of the display65536
Number of grey-scales/blue-scales of display64
Degree of protection (IP), front sideIP65
Width of the front202.0 mm
Height of the front148 mm
Width of panel cutout191 mm
Height of panel cutout137 mm
Built-in depth46 mm
Product Weight (unpacked)1000 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
NB7W-KBA04Protective sheets for NB7W (5 sheets)
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m
