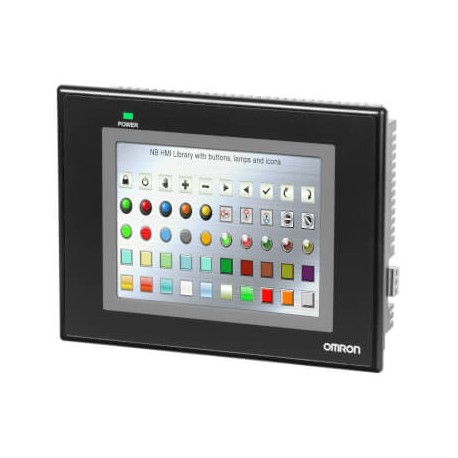

OMRON NB5Q-TW00B NB5Q-TW00B NB5Q9003A NB5QTW00B,1 OMRON Terminal NB of 5.6"" TFT Color, 320 x 234 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NB5Q-TW00B NB5Q9003A NB5QTW00B,1 OMRON Terminal NB of 5.6"" TFT Color, 320 x 234

NB5Q-TW00B

NB5Q9003A

NB5QTW00B,1

OMRON

1 Pcs.

Terminal NB of 5.6"" TFT Color, 320 x 234 5.6" TFT Color NB terminal, 320 x 234 Touch screen HMI, 5.6 inch QVGA (320 x 234 pixel), TFT color

Automation > Graphic panel
NB Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron NB5Q-TW00B terminal NB of 5.6" TFT color, 320 x 234 serves as a human-machine interface device utilized by operators to monitor and interact with industrial automation processes. These display panels are typically installed on machine enclosures or control cabinet doors to provide real-time visualization of system statuses and control parameters.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screen diagonal: 5.6 in
  • Number of pixels, horizontal: 320
  • Number of pixels, vertical: 234
  • Type of display: TFT
  • Frame color: Black
  • Number of Ethernet ports: 0
  • Number of USB ports: 2
  • Number of RS-232 ports: 2
  • Number of RS-422 ports: 1
  • Number of RS-485 ports: 1
  • Number of colors of the display: 65536
  • Number of grey-scales/blue-scales of display: 64
  • Degree of protection (IP), front side: IP65
  • Width of the front: 184.0 mm
  • Height of the front: 142 mm
  • Width of panel cutout: 172.4 mm

More info

▲

Specifications

Screen diagonal5.6 in
Number of pixels, horizontal320
Number of pixels, vertical234
Type of displayTFT
Frame colorBlack
Number of Ethernet ports0
Number of USB ports2
Number of RS-232 ports2
Number of RS-422 ports1
Number of RS-485 ports1
Number of colors of the display65536
Number of grey-scales/blue-scales of display64
Degree of protection (IP), front sideIP65
Width of the front184.0 mm
Height of the front142 mm
Width of panel cutout172.4 mm
Height of panel cutout131 mm
Built-in depth46 mm
Product Weight (unpacked)950 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m
