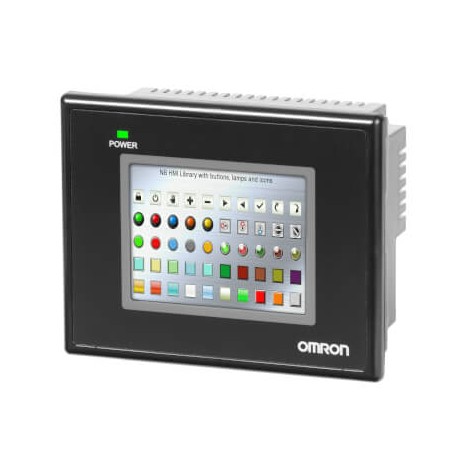

OMRON NB3Q-TW01B NB3Q-TW01B NB3Q9004B NB3QTW01B,1 OMRON Terminal NB of 3.5"" TFT Color, 320 x 240, Ethernet, USB master View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NB3Q-TW01B NB3Q9004B NB3QTW01B,1 OMRON Terminal NB of 3.5"" TFT Color, 320 x 240, Ethernet, USB master

NB3Q-TW01B

NB3Q9004B

NB3QTW01B,1

OMRON

1 Pcs.

Terminal NB of 3.5"" TFT Color, 320 x 240, Ethernet, USB master Touch screen HMI, 3.5 inch QVGA (320 x 240 pixel), TFT color, Ethernet + USB Host

Automation > Graphic panel
NB Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron NB3Q-TW01B NB3Q9004B NB3QTW01B,1 Terminal NB of 3.5 TFT Color, 320 x 240, Ethernet, USB master serves as a dedicated operator interface terminal for small-to-medium industrial machinery. Touch terminals of this design are typically integrated into control panels to present clear graphical data, streamline user inputs, and communicate with programmable logic controllers across industrial networks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Screen diagonal: 3.5 in
  • Number of pixels, horizontal: 320
  • Number of pixels, vertical: 240
  • Type of display: TFT
  • Frame color: Black
  • Number of Ethernet ports: 1
  • Number of USB ports: 2
  • Number of RS-232 ports: 1
  • Number of RS-422 ports: 1
  • Number of RS-485 ports: 1
  • Number of colors of the display: 65536
  • Number of grey-scales/blue-scales of display: 64
  • Degree of protection (IP), front side: IP65
  • Width of the front: 129.8 mm
  • Height of the front: 103.8 mm
  • Width of panel cutout: 119 mm

More info

▲

Specifications

Screen diagonal3.5 in
Number of pixels, horizontal320
Number of pixels, vertical240
Type of displayTFT
Frame colorBlack
Number of Ethernet ports1
Number of USB ports2
Number of RS-232 ports1
Number of RS-422 ports1
Number of RS-485 ports1
Number of colors of the display65536
Number of grey-scales/blue-scales of display64
Degree of protection (IP), front sideIP65
Width of the front129.8 mm
Height of the front103.8 mm
Width of panel cutout119 mm
Height of panel cutout93 mm
Built-in depth52.8 mm
Product Weight (unpacked)490 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
NB3Q-KBA04Accessory HMI, protective sheets for NB3Q (5 sheets)
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m
