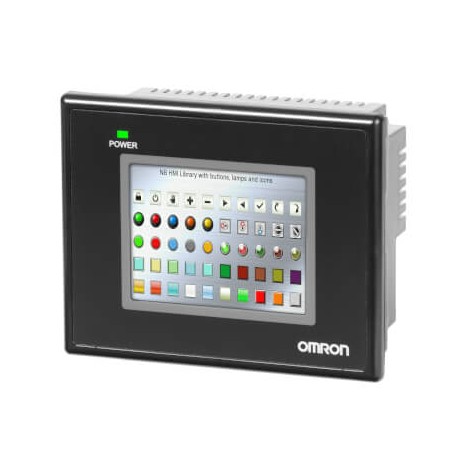

OMRON NB3Q-TW00B NB3Q-TW00B NB3Q9003D NB3QTW00B,1 OMRON Terminal NB of 3.5"" TFT Color, 320 x 240 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NB3Q-TW00B NB3Q9003D NB3QTW00B,1 OMRON Terminal NB of 3.5"" TFT Color, 320 x 240

NB3Q-TW00B

NB3Q9003D

NB3QTW00B,1

OMRON

1 Pcs.

Terminal NB of 3.5"" TFT Color, 320 x 240 3.5" TFT Color NB Terminal, 320 x 240 Touch screen HMI, 3.5 inch QVGA (320 x 240 pixel), TFT color

Automation > Graphic panel
NB Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A terminal NB of 3.5" TFT Color, 320 x 240 by Omron, designated as NB3Q-TW00B, functions as a visual operator interface in industrial automation systems, enabling users to monitor processes, modify parameters, and manage machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Screen diagonal: 3.5 in
  • Number of pixels, horizontal: 320
  • Number of pixels, vertical: 240
  • Type of display: TFT
  • Frame color: Black
  • Number of Ethernet ports: 0
  • Number of USB ports: 2
  • Number of RS-232 ports: 1
  • Number of RS-422 ports: 1
  • Number of RS-485 ports: 1
  • Number of colors of the display: 65536
  • Number of grey-scales/blue-scales of display: 64
  • Degree of protection (IP), front side: IP65
  • Width of the front: 129.8 mm
  • Height of the front: 103.8 mm
  • Width of panel cutout: 119 mm

More info

▲

Specifications

Screen diagonal3.5 in
Number of pixels, horizontal320
Number of pixels, vertical240
Type of displayTFT
Frame colorBlack
Number of Ethernet ports0
Number of USB ports2
Number of RS-232 ports1
Number of RS-422 ports1
Number of RS-485 ports1
Number of colors of the display65536
Number of grey-scales/blue-scales of display64
Degree of protection (IP), front sideIP65
Width of the front129.8 mm
Height of the front103.8 mm
Width of panel cutout119 mm
Height of panel cutout93 mm
Built-in depth52.8 mm
Product Weight (unpacked)480 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
NB3Q-KBA04Accessory HMI, protective sheets for NB3Q (5 sheets)
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m
