OMRON NB10W-TW01B NB10W-TW01B NB109003M NB10WTW01B,1 OMRON Terminal NB of 10.1"" TFT Color, 800 x 480, Ethernet, USB master View larger

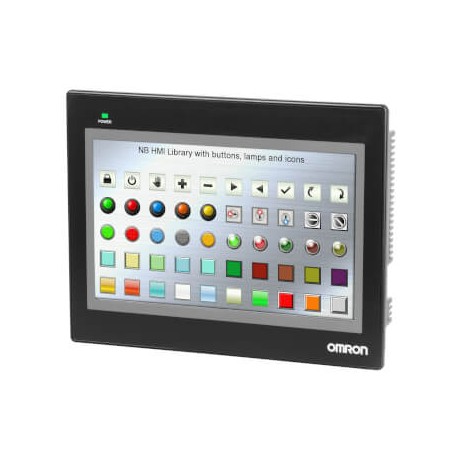

Images are for illustrative purposes only. Please refer to data sheet for details

NB10W-TW01B NB109003M NB10WTW01B,1 OMRON Terminal NB of 10.1"" TFT Color, 800 x 480, Ethernet, USB master

NB10W-TW01B

NB109003M

NB10WTW01B.1

OMRON

1 Pcs.

Terminal NB of 10.1"" TFT Color, 800 x 480, Ethernet, USB master Touch screen HMI, 10.1 inch WVGA (800 x 480 pixel), TFT color, Ethernet + USB Host

Automation > Graphic panel
NB Series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron NB10W-TW01B terminal acts as a dependable human-machine interface for monitoring and controlling industrial machinery and automated production lines. Operator terminals improve plant floor efficiency by rendering real-time graphics, alarm notifications, and interactive system menus.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of display (EF008244): TFT
  • Voltage type (supply voltage) (EF002991): DC
  • Degree of protection (IP), front side (EF003118): IP65
  • Touch technology (EF010884): Resistive touch
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Process value representation (output) possible (EF003111): No
  • With SW interfaces (EF003121): Yes
  • Supporting protocol for other bus systems (EF003062): Yes
  • Colour display (EF003097): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Screen diagonal10.1 inNumber of pixels, horizontal800Number of pixels, vertical480Type of displayTFTFrame colorBlackNumber of Ethernet ports1Number of USB ports2Number of RS-232 ports2Number of RS-422 ports1Number of RS-485 ports1Number of colors of the display65536Number of grey-scales/blue-scales of display64Degree of protection (IP), front sideIP65Width of the front268.8 mmHeight of the front210.8 mmWidth of panel cutout258 mmHeight of panel cutout200 mmBuilt-in depth54 mmProduct Weight (unpacked)1950 g
