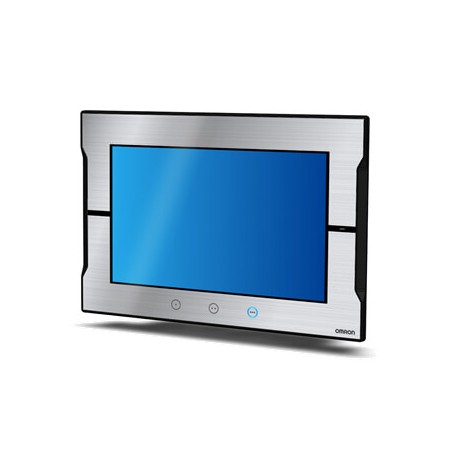

NA5-7W001B 392725 NA579002M OMRON Interface Sysmac NA, 7"", 800x480, TFT 16.7 mill. colors, Black
NA5-7W001B
392725
NA579002M
OMRON
1 Pcs.
Automation > Graphic panel
NA Series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for control system integration, the Omron NA5-7W001B interface gives users a responsive touch panel for monitoring equipment status, adjusting parameters, and managing plant floor operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 15.4 inch wide screen, TFT LCD: 24 bit full color
- Black: NA5-15W101B
- 12.1 inch wide screen, TFT LCD: 1280 × 800 pixels
- Black: NA5-12W101B
- 9 inch wide screen, TFT LCD: 800 × 480 pixels
- Black: NA5-9W001B
- 7 inch wide screen, TFT LCD: 800 × 480 pixels
- Black: NA5-7W001B
- SD memory card: 2 GB
- 4 GB: HMC-SD491
- USB memory: 2 GB
- 8 GB: FZ-MEM8G
- Replacement battery: Battery life: 5 years (at 25°C). This Battery is provided as an accessory.
- For NA5-12W: NA-12WKBA04
- For NA5-9W: NA-9WKBA04
- For NA5-7W: NA-7WKBA04
More info
▲The next generation of Machine Interface
An HMI that is dynamic, intuitive and predictive makes industrial machines more attractive and competitive. Our Sysmac HMI enables faster, more efficient control and monitoring—and a more natural, proactive relationship between operator and machine.
- Complete functionality scalable with widescreen across 7”, 9”, 12”, 15” range
- Available in black or silver
- High resolution (1280 × 800 pixel for 12” and 15”, 800 × 480 pixel for 7” and 9”)
Machine interface
Accessories
Computer software
Specifications
−20 to +60°C3 | ||||
| 10 to 90%2 | ||||
| 5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2for 100 minutes each in X,Y, and Z directions | ||||
Front-panel controls: IP65 oil-proof type, UL type 4X (using a high pressure waterproof attachment (PWA)) | ||||
| The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.) | ||||
UL 508/CSA standard C22.2 No.1424 | ||||
*1The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
·
The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
· The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
· The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.
*2Use the Programmable Terminal within the following temperature and humidity ranges.

*3Store the Programmable Terminal within the following temperature and humidity ranges.
