OMRON MY4Z 24VAC (S) MY4Z 24VAC (S) MYS 4702E MY4Z24ACS OMRON Relay General Application View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MY4Z 24VAC (S) MYS 4702E MY4Z24ACS OMRON Relay General Application

MY4Z 24VAC (S)

MYS 4702E

MY4Z24ACS

OMRON

10 Pcs.

Relay General Application General Application Relay Relay, plug-in, 14-pin, bifurcated contacts, 4PDT, 5 A, mech indicator, label facility, 24 VAC

Automation > Switching relay
MY-S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

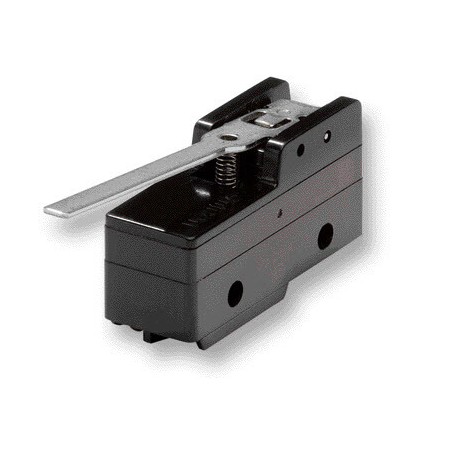

Limit switch with basic plastic housing

The Z series of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches. But with the basic plastic housing the basic switches are an ideal solution with best value for money for uncritical environments or when separately encased in subassemblies.

  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches

Ordering information

Actuator type1

Order code2

Solder terminal

Screw terminal

Pin plunger

Z-15G

Z-15G-B

Short spring plunger

Z-15GD

Z-15GD-B

Leaf spring

Z-15GL

Z-15GL-B

Reverse hinge lever

Z-15GM

Z-15GM-B

Reverse hinge roller lever

Z-15GM2

Z-15GM2-B

Plunger with M12 mounting

Z-15GQ

Z-15GQ-B

Hinge lever

Z-15GW

Z-15GW-B

Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications

Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A3

0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories

Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models

Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B

Cover with bottom cable exit

AP-Z

1.Other actuator types are available. For the full range refer to the complete datasheet.

2.Contacts are directly accessible. Additional protective measures are required e.g. order covers from accessories.

3.For switching high currents at high voltages (e.g. 10A at 125VDC) contact your OMRON representative.


ETIM for 155269 Relays (EC001437)
Feature Name Feature Value
Type of switch contact (EF003358) Other
Drive, polarization (EF003355) Polarity free
Voltage type for actuating (EF008242) AC
Type of electric connection (EF003961) Plug-in connection
Complete with socket (EF003359) No
Number of contacts as change-over contact (EF008257) 4
Number of contacts as normally open contact (EF008256) 0
Width (EF000008) 21.5 mm
Number of contacts as normally closed contact (EF008255) 0
Height (EF000040) 28 mm
Depth (EF000049) 36 mm
