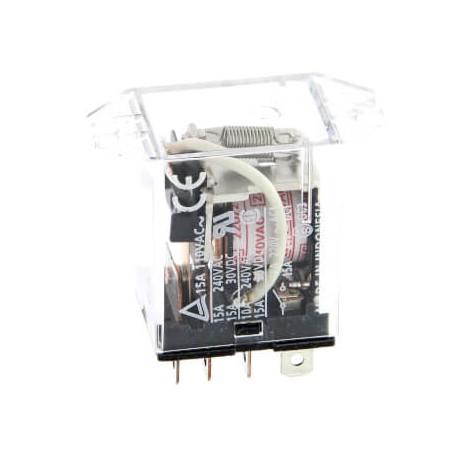

OMRON LY1 24VDC LY1 24VDC LY1 5013M LY124DC 2 OMRON SPDT 15A enchuf/welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY1 24VDC LY1 5013M LY124DC 2 OMRON SPDT 15A enchuf/welding

LY1 24VDC

LY1 5013M

LY124DC 2

OMRON

50 Pcs.

SPDT 15A enchuf/welding Relay, plug-in, 5-pin, SPDT, 15 A, 24 VDC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron LY1 24VDC is a single-contact plug-in power relay designed for general industrial switching applications. Electromechanical relays like this one provide reliable galvanic isolation and control between low-voltage logic circuits and higher-power load circuits within control panels and automation machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 21.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28.0 mm
  • Depth (EF000049): 36.0 mm
  • Nominal current (EF000001): 15 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purpose, High powerPoles1Rated carry current15 ACoil voltage24 VOperation voltageDCContact materialAg alloyContact descriptionSPDTFeaturesTransparent caseTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
