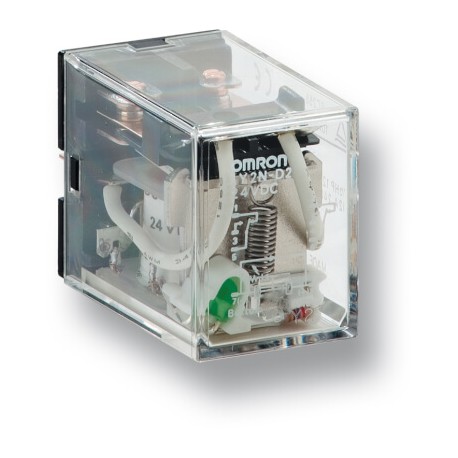

OMRON LY1-0 24VDC LY1-0 24VDC LY105011D LY1024DC OMRON SPDT printed circuit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY1-0 24VDC LY105011D LY1024DC OMRON SPDT printed circuit

LY1-0 24VDC

LY105011D

LY1024DC

OMRON

1 Pcs.

SPDT printed circuit SPDT Printed Circuit Board Relay, PCB pins, 8-pin, SPDT, 10 A, 24 VDC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An LY1-0 24VDC LY105011D LY1024DC OMRON SPDT printed circuit relay is a compact switching component integrated directly onto printed circuit boards to control electrical loads within electronic devices and industrial control systems. PCB relays enable low-voltage logic circuits to manage higher-current peripheral equipment reliably and efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Type of electric connection (EF003961): PCB connection
  • Complete with socket (EF003359): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 21.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28.0 mm
  • Depth (EF000049): 36.0 mm
