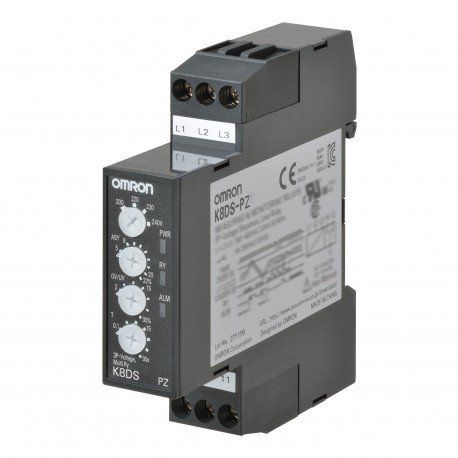

OMRON K8DS-PZ1 K8DS-PZ1 K8DS0008M K8DSPZ1 OMRON Three-phase voltage minimum+Sequence +Per phase+Surge+asimetria 200-240AC 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8DS-PZ1 K8DS0008M K8DSPZ1 OMRON Three-phase voltage minimum+Sequence +Per phase+Surge+asimetria 200-240AC 1..

K8DS-PZ1

K8DS0008M

K8DSPZ1

OMRON

1 Pcs.

Three-phase voltage minimum+Sequence +Per phase+Surge+asimetria 200-240AC 17.5 mm Three-phase minimum voltage+Sequence +Per phase+Overvoltage+asymmetry 200-240AC 17.5mm Monitoring relay 17.5mm wide, over/under voltage, asymmetry, phase sequence and loss, 3-phase 3-wire, 200 to 240 VAC, one SPDT

Automation > Phase monitoring relay
K8DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protect industrial systems from electrical anomalies using the Omron K8DS-PZ1, a specialized three-phase voltage monitoring relay designed to safeguard sensitive machinery. Devices of this type are routinely installed in control panels to continuously supervise electrical parameters and prevent equipment damage caused by irregular power conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • With detachable clamps (EF003340): No
  • Phase imbalance monitoring (EF003416): Yes
  • Phase sequence monitoring (EF003412): No
  • Function under voltage detection (EF003414): Yes
  • Function over voltage detection (EF003415): Yes
  • Phase failure detection (EF003413): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Min. adjustable delay-on energization time (EF008190): 0.1 s
  • Max. permitted delay-on energization time (EF008189): 30 s
  • Min. adjustable off-delay time (EF008192): 0 s
  • Width (EF000008): 17.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 80 mm

More info

▲
  • Worldwide power specifications supported by one unit
  • Front rotary switches allow for easy and accurate configuration
  • Reset method: automatic
  • LED indicators: Power (Green), Relay output (Yellow), Alarm output (Red)
  • Robust operating temperature: -20 to 60 ⁰C
