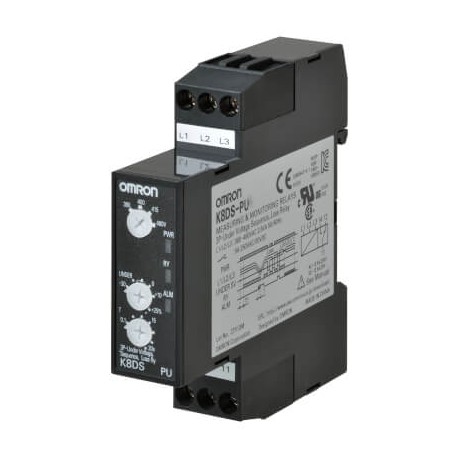

OMRON K8DS-PU2 K8DS-PU2 K8DS0003R K8DSPU2 OMRON Three-phase voltage minimum+Sequence +Per phase, 380-480AC 17.5 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8DS-PU2 K8DS0003R K8DSPU2 OMRON Three-phase voltage minimum+Sequence +Per phase, 380-480AC 17.5 mm

K8DS-PU2

K8DS0003R

K8DSPU2

OMRON

1 Pcs.

Three-phase voltage minimum+Sequence +Per phase, 380-480AC 17.5 mm Monitoring relay 17.5mm wide, under voltage, phase sequence and loss,asymmetry 3-phase 3-wire, 380 to 480 VAC, one SPDT

Automation > Phase monitoring relay
K8DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precise voltage management and phase asymmetry control are delivered by the Omron K8DS-PU2 three-phase monitoring relay. Industrial automation systems utilize these slim-profile devices to supervise incoming AC mains and protect sensitive loads from undervoltage and phase irregularities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • With detachable clamps (EF003340): No
  • Phase imbalance monitoring (EF003416): Yes
  • Phase sequence monitoring (EF003412): No
  • Function under voltage detection (EF003414): Yes
  • Function over voltage detection (EF003415): No
  • Phase failure detection (EF003413): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Min. adjustable delay-on energization time (EF008190): 0.1 s
  • Max. permitted delay-on energization time (EF008189): 30 s
  • Min. adjustable off-delay time (EF008192): 0 s
  • Width (EF000008): 17.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 74 mm

More info

▲
FunctionsOver/under voltage, Phase loss, Phase sequenceInstallation typeDIN railTerminal typeScrewSize17.5 mmConnection method3-wireSupply voltage AC380-480 VOutput typeRelayContact descriptionSPDTBody colorBlack

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
