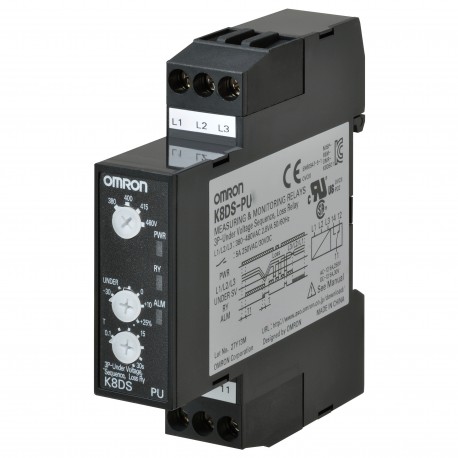

OMRON K8DS-PU1 K8DS-PU1 K8DS0002M K8DSPU1 OMRON Three-phase voltage minimum+Sequence +Per phase 200-240AC 17.5 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8DS-PU1 K8DS0002M K8DSPU1 OMRON Three-phase voltage minimum+Sequence +Per phase 200-240AC 17.5 mm

K8DS-PU1

K8DS0002M

K8DSPU1

OMRON

1 Pcs.

Three-phase voltage minimum+Sequence +Per phase 200-240AC 17.5 mm Three-phase minimum voltage+Sequence +Per phase 200-240AC 17.5mm Monitoring relay 17.5mm wide, under voltage, phase sequence and loss, asymmetry 3-phase 3-wire, 200 to 240 VAC, one SPDT

Automation > Phase monitoring relay
K8DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron K8DS-PU1 is a compact three-phase monitoring relay designed to detect electrical faults such as voltage sags and phase imbalances within industrial control environments. Such monitoring devices safeguard motors and automated equipment from running under hazardous electrical conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • With detachable clamps (EF003340): No
  • Phase imbalance monitoring (EF003416): Yes
  • Phase sequence monitoring (EF003412): No
  • Function under voltage detection (EF003414): Yes
  • Function over voltage detection (EF003415): No
  • Phase failure detection (EF003413): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Min. adjustable delay-on energization time (EF008190): 0.1 s
  • Max. permitted delay-on energization time (EF008189): 30 s
  • Min. adjustable off-delay time (EF008192): 0 s
  • Width (EF000008): 17.5 mm
  • Height (EF000040): 74 mm

More info

▲
FunctionsOver/under voltage, Phase loss, Phase sequenceInstallation typeDIN railTerminal typeScrewSize17.5 mmConnection method3-wireSupply voltage AC200-240 VOutput typeRelayContact descriptionSPDTBody colorBlack
