View larger
Images are for illustrative purposes only. Please refer to data sheet for details

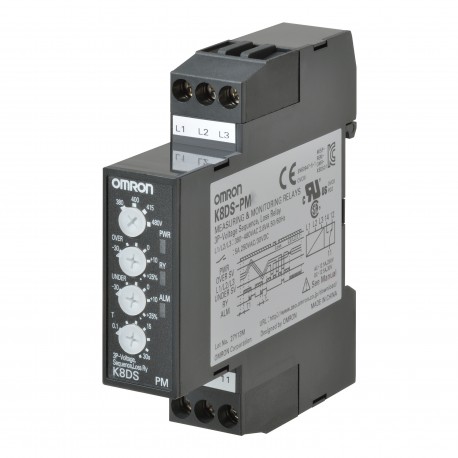

K8DS-PM1 K8DS0004G K8DSPM1 OMRON Three-phase Voltage Max / Min+Sequence+Per phase 200-240AC 17.5 mm
K8DS-PM1
K8DS0004G
K8DSPM1
OMRON
1 Pcs.
Three-phase Voltage Max / Min+Sequence+Per phase 200-240AC 17.5 mm
Monitoring relay 17.5mm wide, over/under voltage, phase sequence and loss, 3-phase 3-wire, 200 to 240 VAC, one SPDT
Automation > Phase monitoring relay
K8DS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Worldwide power specifications supported by one unit
- Phase sequence, phase loss: Operation reaction time 0.1s maximum
- Overvoltage or undervoltage: Operation time setting from 0.1 to 30s
- Relay warning status can easily be monitored using the LED indicator
- Robust operating temperature: -20 to 60 ⁰C
Accessories
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| With detachable clamps (EF003340) | No |
| Phase imbalance monitoring (EF003416) | Yes |
| Phase sequence monitoring (EF003412) | No |
| Function under voltage detection (EF003414) | Yes |
| Function over voltage detection (EF003415) | Yes |
| Phase failure detection (EF003413) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Min. adjustable off-delay time (EF008192) | 0 s |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Max. permitted off-delay time (EF008191) | 0 s |
| Depth (EF000049) | 100 mm |
| Supply voltage AC 50 Hz (EF007532) | 200 V |
| Supply voltage AC 60 Hz (EF007533) | 200 V |
| Voltage measuring range (EF002486) | 200 V |
