View larger
Images are for illustrative purposes only. Please refer to data sheet for details

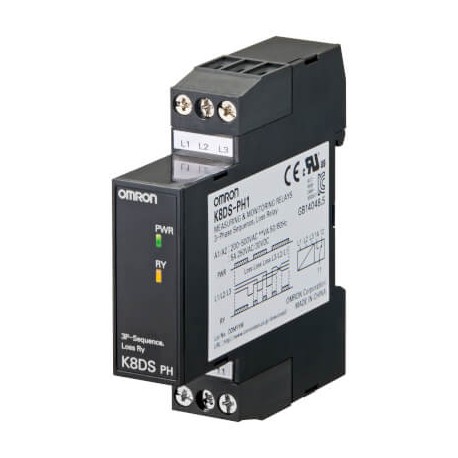

K8DS-PH1 K8DS0001B K8DSPH1 OMRON Three phase Sequence /loss of phase
K8DS-PH1
K8DS0001B
K8DSPH1
OMRON
1 Pcs.
Three phase Sequence /loss of phase
Monitoring relay 17.5mm wide, simultanious monitoring of phase sequence and loss in 3phase 3wire systems, One SPDT
Automation > Phase monitoring relay
K8DS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
FunctionsPhase loss, Phase sequenceInstallation typeDIN railTerminal typeScrewSize17.5 mmConnection method3-wireSupply voltage AC200-480 VOutput typeRelayContact descriptionSPDTBody colorBlack
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| External power supply required (EF003292) | Yes |
| With detachable clamps (EF003340) | No |
| Phase imbalance monitoring (EF003416) | Yes |
| Phase sequence monitoring (EF003412) | No |
| Function under voltage detection (EF003414) | No |
| Function over voltage detection (EF003415) | No |
| Phase failure detection (EF003413) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0 s |
| Max. permitted delay-on energization time (EF008189) | 0 s |
| Min. adjustable off-delay time (EF008192) | 0 s |
| Width (EF000008) | 17.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 73 mm |
| Rated switch current (EF006706) | 5 A |
| Max. permitted off-delay time (EF008191) | 0 s |
| Depth (EF000049) | 80 mm |
| Supply voltage AC 50 Hz (EF007532) | 200 V |
| Operating voltage DC (EF008208) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 200 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Voltage measuring range (EF002486) | 200 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
