View larger
Images are for illustrative purposes only. Please refer to data sheet for details

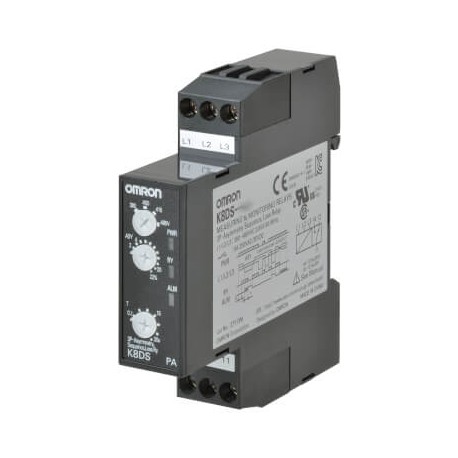

K8DS-PA2 K8DS0007A K8DSPA2 OMRON Three-phase Asymmetry+Sequence+Loss phase 380-480AC 17.5 mm
K8DS-PA2
K8DS0007A
K8DSPA2
OMRON
1 Pcs.
Three-phase Asymmetry+Sequence+Loss phase 380-480AC 17.5 mm
Monitoring relay 17.5mm wide, asymmetry, phase sequence and loss, 3-phase 3-wire, 380 to 480 VAC, one SPDT
Automation > Phase monitoring relay
K8DS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
FunctionsPhase asymmetry, Phase loss, Phase sequenceInstallation typeDIN railTerminal typeScrewSize17.5 mmConnection method3-wireSupply voltage AC380-480 VOutput typeRelayContact descriptionSPDTBody colorBlack
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| With detachable clamps (EF003340) | No |
| Phase imbalance monitoring (EF003416) | Yes |
| Phase sequence monitoring (EF003412) | No |
| Function under voltage detection (EF003414) | No |
| Function over voltage detection (EF003415) | No |
| Phase failure detection (EF003413) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Min. adjustable off-delay time (EF008192) | 0 s |
| Width (EF000008) | 17.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 74 mm |
| Max. permitted off-delay time (EF008191) | 0 s |
| Depth (EF000049) | 80 mm |
| Supply voltage AC 50 Hz (EF007532) | 380 V |
| Supply voltage AC 60 Hz (EF007533) | 380 V |
| Voltage measuring range (EF002486) | 380 V |
