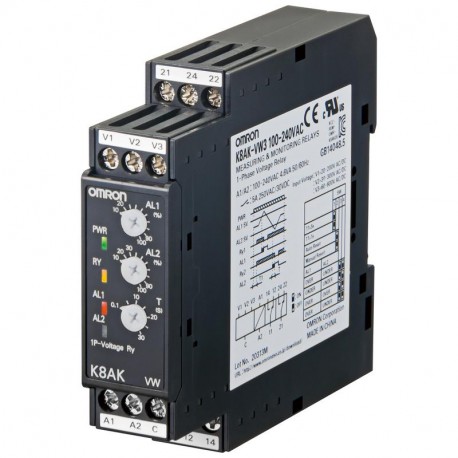

OMRON K8AK-VW3 24VAC/DC K8AK-VW3 24VAC/DC K8AK0020H K8AKVW324VACDC OMRON Single-phase Voltage Max / Min 20-600V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-VW3 24VAC/DC K8AK0020H K8AKVW324VACDC OMRON Single-phase Voltage Max / Min 20-600V

K8AK-VW3 24VAC/DC

K8AK0020H

K8AKVW324VACDC

OMRON

1 Pcs.

Single-phase Voltage Max / Min 20-600V Single Phase Voltage Max and Min 20-600V Monitoring relay 22.5mm wide, Single phase over or under voltage 20 to 600V AC or DC, Two SPDT, 24VAC/DC

Automation > Voltage monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A K8AK-VW3 24VAC/DC voltage monitoring relay is deployed in electrical switchboards to protect sensitive assets from abnormal voltage excursions. Devices of this class monitor single-phase networks for out-of-bounds conditions, triggering protective switching operations to prevent equipment damage from overvoltage or undervoltage events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of voltage measuring range (EF003399): AC/DC
  • Contains function DC-over voltage (EF003397): Yes
  • External power supply required (EF003292): Yes
  • Contains function DC-voltage hysteresis (EF003398): Yes
  • With detachable clamps (EF003340): No
  • Single-phase under voltage possible (EF003390): Yes
  • Three-phase under voltage possible (EF003391): No
  • Three-phase over voltage possible (EF003393): No
  • Contains function DC-under voltage (EF003396): Yes
  • Single-phase over voltage possible (EF003392): Yes
  • Single-phase hysteresis possible (EF003394): Yes
  • Three-phase hysteresis possible (EF003395): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0

More info

▲
  • Single-phase voltage window relay
  • In 22.5 mm wide industrial housing
  • Under and over, low/low or high/high control
  • Supply voltages: 24 VAC/DC, 100 to 240 VAC
  • Easy wiring with ferrules
