View larger
Images are for illustrative purposes only. Please refer to data sheet for details

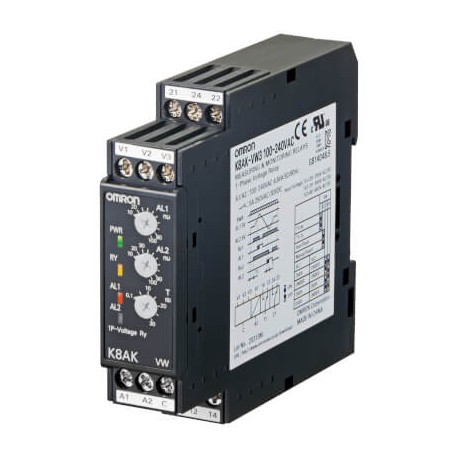

K8AK-VW3 100-240VAC K8AK0019D K8AKVW3100240VAC OMRON Single-phase Voltage Max / Min 20-600V
K8AK-VW3 100-240VAC
K8AK0019D
K8AKVW3100240VAC
OMRON
1 Pcs.
Single-phase Voltage Max / Min 20-600V
Monitoring relay 22.5mm wide, Single phase over or under voltage 20 to 600V AC or DC, Two SPDT, 100-240 VAC
Automation > Voltage monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
FunctionsVoltageInstallation typeDIN railTerminal typeScrewSize22.5 mmSupply voltage AC100-240 VOutput typeRelayContact description2 x SPDTBody colorBlack
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Type of voltage measuring range (EF003399) | AC/DC |
| Contains function DC-over voltage (EF003397) | Yes |
| External power supply required (EF003292) | Yes |
| Contains function DC-voltage hysteresis (EF003398) | Yes |
| With detachable clamps (EF003340) | No |
| Single-phase under voltage possible (EF003390) | Yes |
| Three-phase under voltage possible (EF003391) | No |
| Three-phase over voltage possible (EF003393) | No |
| Contains function DC-under voltage (EF003396) | Yes |
| Single-phase over voltage possible (EF003392) | Yes |
| Single-phase hysteresis possible (EF003394) | Yes |
| Three-phase hysteresis possible (EF003395) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Min. adjustable off-delay time (EF008192) | 0.1 s |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Rated switch current (EF006706) | 5 A |
| Max. permitted off-delay time (EF008191) | 30 s |
| Depth (EF000049) | 100 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Response value voltage (EF008193) | 20 V |
| Voltage measuring range 1 (EF006134) | 20 V |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
