> OMRON > Monitoring Relays > K8AK > K8AK0018F

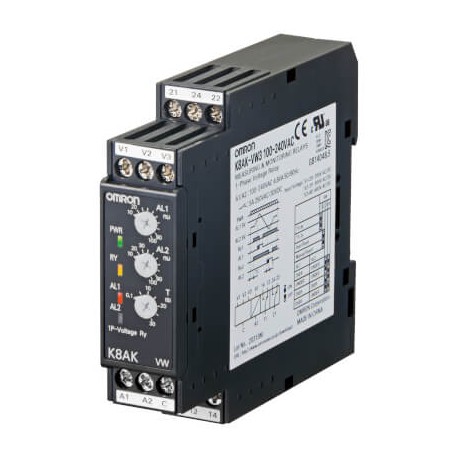

OMRON K8AK-VW2 24VAC/DC K8AK-VW2 24VAC/DC K8AK0018F K8AKVW224VACDC OMRON Single-phase Voltage Max and Min 1-150VAC/DC 24VAC/DC 2 SPDT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-VW2 24VAC/DC K8AK0018F K8AKVW224VACDC OMRON Single-phase Voltage Max and Min 1-150VAC/DC 24VAC/DC 2 SPDT

K8AK-VW2 24VAC/DC

K8AK0018F

K8AKVW224VACDC

OMRON

1 Pcs.

Single-phase Voltage Max and Min 1-150VAC/DC 24VAC/DC 2 SPDT Monitoring relay 22.5mm wide, Single phase over or under voltage 1 to 150V AC or DC, Two SPDT, 24VAC/DC

Automation > Voltage monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

FunctionsVoltage
Installation typeDIN rail
Terminal typeScrew
Size22.5 mm
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Output typeRelay
Contact description2 x SPDT
Body colorBlack

ETIM for 378175 Relays (EC001438)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Voltage type (supply voltage) (EF002991) AC/DC
Type of voltage measuring range (EF003399) AC/DC
Contains function DC-over voltage (EF003397) Yes
External power supply required (EF003292) Yes
Contains function DC-voltage hysteresis (EF003398) Yes
With detachable clamps (EF003340) No
Single-phase under voltage possible (EF003390) Yes
Three-phase under voltage possible (EF003391) No
Three-phase over voltage possible (EF003393) No
Contains function DC-under voltage (EF003396) Yes
Single-phase over voltage possible (EF003392) Yes
Single-phase hysteresis possible (EF003394) Yes
Three-phase hysteresis possible (EF003395) No
Number of contacts as change-over contact (EF008257) 2
Number of contacts as normally open contact (EF008256) 0
Min. adjustable delay-on energization time (EF008190) 0.1 s
Max. permitted delay-on energization time (EF008189) 30 s
Min. adjustable off-delay time (EF008192) 0.1 s
Width (EF000008) 22.5 mm
Number of contacts as normally closed contact (EF008255) 0
Height (EF000040) 90 mm
Rated switch current (EF006706) 5 A
Max. permitted off-delay time (EF008191) 30 s
Depth (EF000049) 100 mm
Supply voltage AC 50 Hz (EF007532) 20.4 V
Response value voltage (EF008193) 1 V
Voltage measuring range 1 (EF006134) 1 V
Supply voltage AC 60 Hz (EF007533) 20.4 V
Supply voltage DC (EF007534) 20.4 V
