View larger
Images are for illustrative purposes only. Please refer to data sheet for details

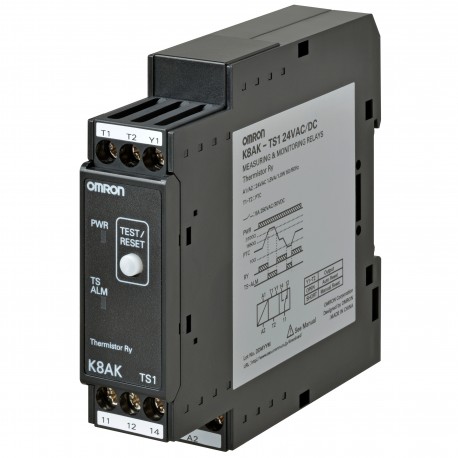

K8AK-TS1 24VAC/DC K8AK0036D K8AKTS124VACDC OMRON Three-phase, thermistor 24VAC/DC 2 SPDT SPDT
K8AK-TS1 24VAC/DC
K8AK0036D
K8AKTS124VACDC
OMRON
1 Pcs.
Three-phase, thermistor 24VAC/DC 2 SPDT SPDT
Monitoring relay 22.5mm wide, temperature monitoring, 24 VAC/VDC, one SPDT
Automation > Temperature monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Application | Motor condition |
| Functions | Temperature |
| Installation type | DIN rail |
| Terminal type | Screw |
| Size | 22.5 mm |
| Temperature input type | Thermistor |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Output type | Relay |
| Contact description | SPDT |
| Body color | Black |
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Error registration possible (EF003423) | Yes |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 21.6 V |
| Supply voltage AC 60 Hz (EF007533) | 21.6 V |
| Supply voltage DC (EF007534) | 21.6 V |
