View larger
Images are for illustrative purposes only. Please refer to data sheet for details

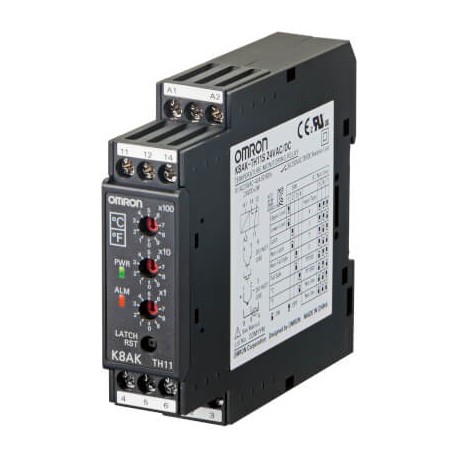

K8AK-TH11S 100-240VAC K8AK0030E K8AKTH11S100240VAC OMRON Relay monitoring Temperature-0-999ºC/F 100-240VAC
K8AK-TH11S 100-240VAC
K8AK0030E
K8AKTH11S100240VAC
OMRON
1 Pcs.
Relay monitoring Temperature-0-999ºC/F 100-240VAC
Monitoring relay 22.5 mm wide, over or under temperature, 0-999 °C/F Thermocouple and PT100 input types, One SPDT
Automation > Temperature monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Size22.5 mmFunctionsTemperatureNumber of control loops1Temperature range0-999 °CSupply voltage AC100-240 VControl outputRelayTerminal typeScrewTemperature input typeE, J, JPt100, K, Pt1000, T
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | Yes |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
