View larger
Images are for illustrative purposes only. Please refer to data sheet for details

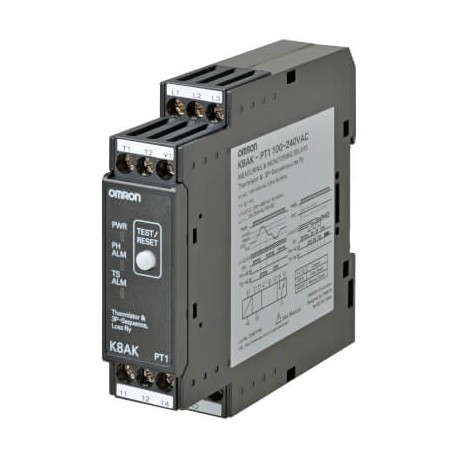

K8AK-PT1 100-240VAC K8AK0037B K8AKPT1100240VAC OMRON Three-phase, thermistor + sequence + loss of phase
K8AK-PT1 100-240VAC
K8AK0037B
K8AKPT1100240VAC
OMRON
1 Pcs.
Three-phase, thermistor + sequence + loss of phase
Monitoring relay 22.5mm wide, temperature monitoring and phase squence and phase loss, 100 to 240 VAC, one SPDT
Automation > Temperature monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Application | Motor condition |
| Functions | Phase loss, Phase sequence, Temperature |
| Installation type | DIN Rail |
| Terminal | Screw |
| Size | 22.5 mm |
| Temperature input type | Thermistor |
| Supply voltage AC | 100-240 V |
| Output type | Relay |
| Contact description | SPDT |
| Body color | Black |
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | Yes |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 100 mm |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
