> OMRON > Monitoring Relays > K8AK > K8AK0029A

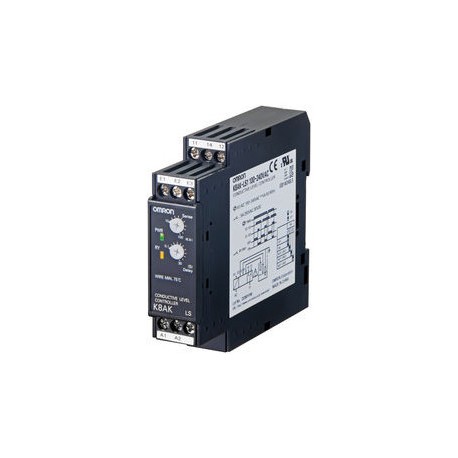

OMRON K8AK-LS1 24VAC/DC K8AK-LS1 24VAC/DC K8AK0029A K8AKLS124VACDC OMRON Level relay 10K TO 100K 24VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K8AK-LS1 24VAC/DC K8AK0029A K8AKLS124VACDC OMRON Level relay 10K TO 100K 24VAC/DC

K8AK-LS1 24VAC/DC

K8AK0029A

K8AKLS124VACDC

OMRON

1 Pcs.

Level relay 10K TO 100K 24VAC/DC Monitoring relay 22.5 mm wide, Conductive level control for liquid, 10k to 100k Ohm, One SPDT, 24VAC/DC

Automation > (Fill) level monitoring relay
K8AK

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

ApplicationOrdinary purified water, Sewage water
FunctionsConductive level control
Cable length100 m
Installation typeDIN rail
Terminal typeScrew
Size22.5 mm
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Output typeRelay
Contact descriptionSPDT
Body colorBlack
Number of inputs for electrodes3

Accessories

BF-1Electrode holder, 1-pole electrode, standard type (150°C), liquid with low specific resistance
BF-5Electrode holder, 5 way, standard type (150°C)
BS-1Electrode holder, 1-pol electrode, for high pressure or high temperature applications (250ºC), 1.96Mpa
F03-11 PROTECTIVE COVER FOR BFProtective cover for electrode holders PS or BF series)
F03-12 FRAME FOR FIXATIONPS Electrode Holder Mounting Plate
F03-14 1P SEPARATORElectrode separator, 1 electrode, ceramic, 250 °C max, 15 g
F03-14 3P SEPARATORElectrode separator, 3 electrodes, ceramic, 250 °C max, 30 g
F03-14 5P SEPARATORElectrode separator, 5 electrodes, ceramic, 250 °C max, 30 g
PH-2 HAIPREN CODE 20MUnderwater Electrode, Hypalon cable, double pole, 20 m length
PS-31 SUS304 1000MMElectrode set, holder & electrodes, 1 m length, 4 mm diameter, non-extendable
PS-31 SUS304 300MMElectrode set, holder & electrodes, 0.3 m length, 4 mm diameter, non-extendable
PS-3SElectrode holder, 3 way
PS-4SElectrode holder, 4 way
PS-5SElectrode holder, 5 way

ETIM for 378186 Relays (EC001447)
Feature Name Feature Value
Physical measurement principle (EF008238) Conductive
Voltage type (operating voltage) (EF005294) AC/DC
Type of electric connection (EF003961) Screw connection
Voltage type (supply voltage) (EF002991) AC/DC
With detachable clamps (EF003340) No
Response value sensitivity adjustable (EF003429) Yes
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Min. adjustable off-delay time (EF008192) 0.1 s
Width (EF000008) 22.5 mm
Number of contacts as normally closed contact (EF008255) 0
Max. permitted operate delay time (EF008194) 10 s
Height (EF000040) 100 mm
Min. adjustable operate delay time (EF008195) 0.1 s
Rated switch current (EF006706) 5 A
Max. permitted off-delay time (EF008191) 10 s
Depth (EF000049) 90 mm
Number of inputs for electrodes (EF003427) 3
Supply voltage AC 50 Hz (EF007532) 20.4 V
Operating voltage DC (EF008208) 0 V
Supply voltage AC 60 Hz (EF007533) 20.4 V
Operating voltage AC 50 Hz (EF008206) 0 V
Supply voltage DC (EF007534) 20.4 V
Operating voltage AC 60 Hz (EF008207) 0 V
