View larger
Images are for illustrative purposes only. Please refer to data sheet for details

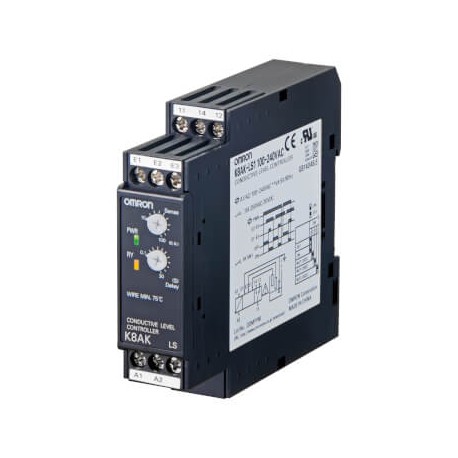

K8AK-LS1 100-240VAC K8AK0028C K8AKLS1100240VAC OMRON Level relay 10K TO 100K 100-240VAC
K8AK-LS1 100-240VAC
K8AK0028C
K8AKLS1100240VAC
OMRON
1 Pcs.
Level relay 10K TO 100K 100-240VAC
Monitoring relay 22.5 mm wide, Conductive level control for liquid, 10k to 100k Ohm, One SPDT, 100-240 VAC
Automation > (Fill) level monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationOrdinary purified water, Sewage waterFunctionsConductive level controlCable length100 mInstallation typeDIN railTerminal typeScrewSize22.5 mmSupply voltage AC100-240 VOutput typeRelayContact descriptionSPDTBody colorBlackNumber of inputs for electrodes3
| Feature Name | Feature Value |
|---|---|
| Physical measurement principle (EF008238) | Conductive |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| With detachable clamps (EF003340) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable off-delay time (EF008192) | 0.1 s |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. permitted operate delay time (EF008194) | 10 s |
| Height (EF000040) | 100 mm |
| Min. adjustable operate delay time (EF008195) | 0.1 s |
| Rated switch current (EF006706) | 5 A |
| Max. permitted off-delay time (EF008191) | 10 s |
| Depth (EF000049) | 90 mm |
| Number of inputs for electrodes (EF003427) | 3 |
| Supply voltage AC 50 Hz (EF007532) | 85 V |
| Operating voltage DC (EF008208) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 85 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
