View larger
Images are for illustrative purposes only. Please refer to data sheet for details

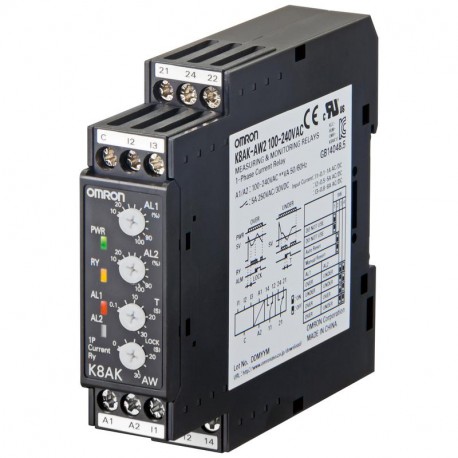

K8AK-AW3 100-240VAC K8AK0011R K8AKAW3100240VAC OMRON Single phase Current Max and Min 10-200A 110-240VAC 2 S..
K8AK-AW3 100-240VAC
K8AK0011R
K8AKAW3100240VAC
OMRON
1 Pcs.
Single phase Current Max and Min 10-200A 110-240VAC 2 SPDT
Monitoring relay 22.5mm wide, Single phase over or under current 10 to 200A AC (External CT required), Two SPDT, 100-240 VAC
Automation > Current monitoring relay
K8AK
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Single-phase current window relay
- In 22.5 mm wide industrial housing
- Under and over control
- Supply voltages: 24 VAC/DC, 100 to 240 VAC
- Easy wiring with ferrules
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Three-phase under current possible (EF003406) | No |
| Function DC-current hysteresis (EF003411) | Yes |
| Single-phase under current possible (EF003405) | Yes |
| External power supply required (EF003292) | Yes |
| Contains function DC-voltage overcurrent (EF003410) | No |
| With detachable clamps (EF003340) | No |
| External current transformer (EF001923) | Yes |
| Single-phase overcurrent possible (EF003407) | Yes |
| Three-phase overcurrent possible (EF003408) | No |
| Contains function DC-voltage under current (EF003409) | No |
| Single-phase hysteresis possible (EF003394) | Yes |
| Three-phase hysteresis possible (EF003395) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Min. adjustable off-delay time (EF008192) | 0.1 s |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Rated switch current (EF006706) | 5 A |
| Max. permitted off-delay time (EF008191) | 30 s |
| Depth (EF000049) | 100 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Current measuring range (EF000417) | 10 A |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
